Yamaha YFZ450 2WD 2004 - RMSTATOR 140W Conversion Kit Ac-Dc

RMSTATOR 140W CONVERSION KIT AC-DC

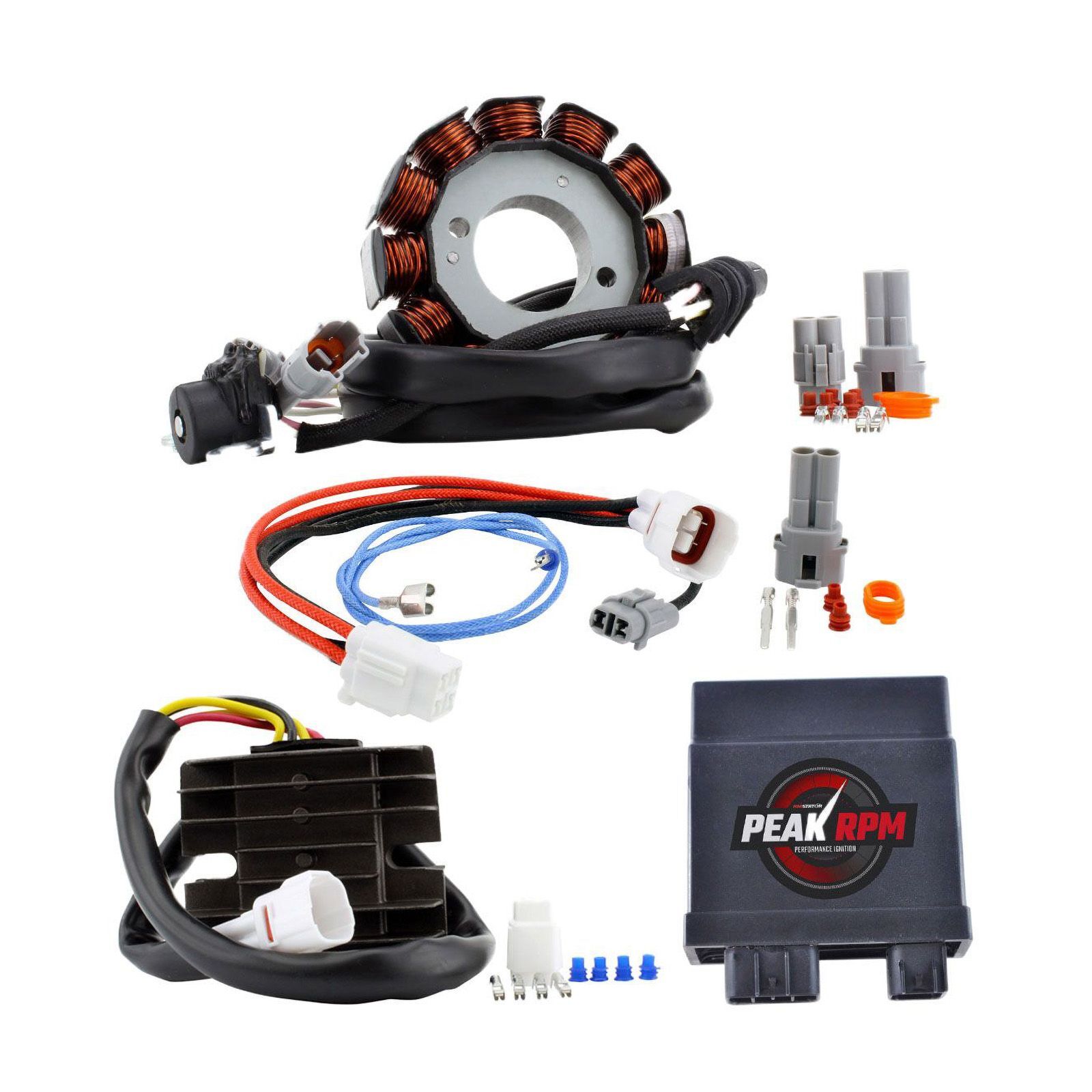

Brand new HO Stator + Heavy Duty Regulator Rectifier + High-Performance CDI Box ECM Kit

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• All shipped products are tested

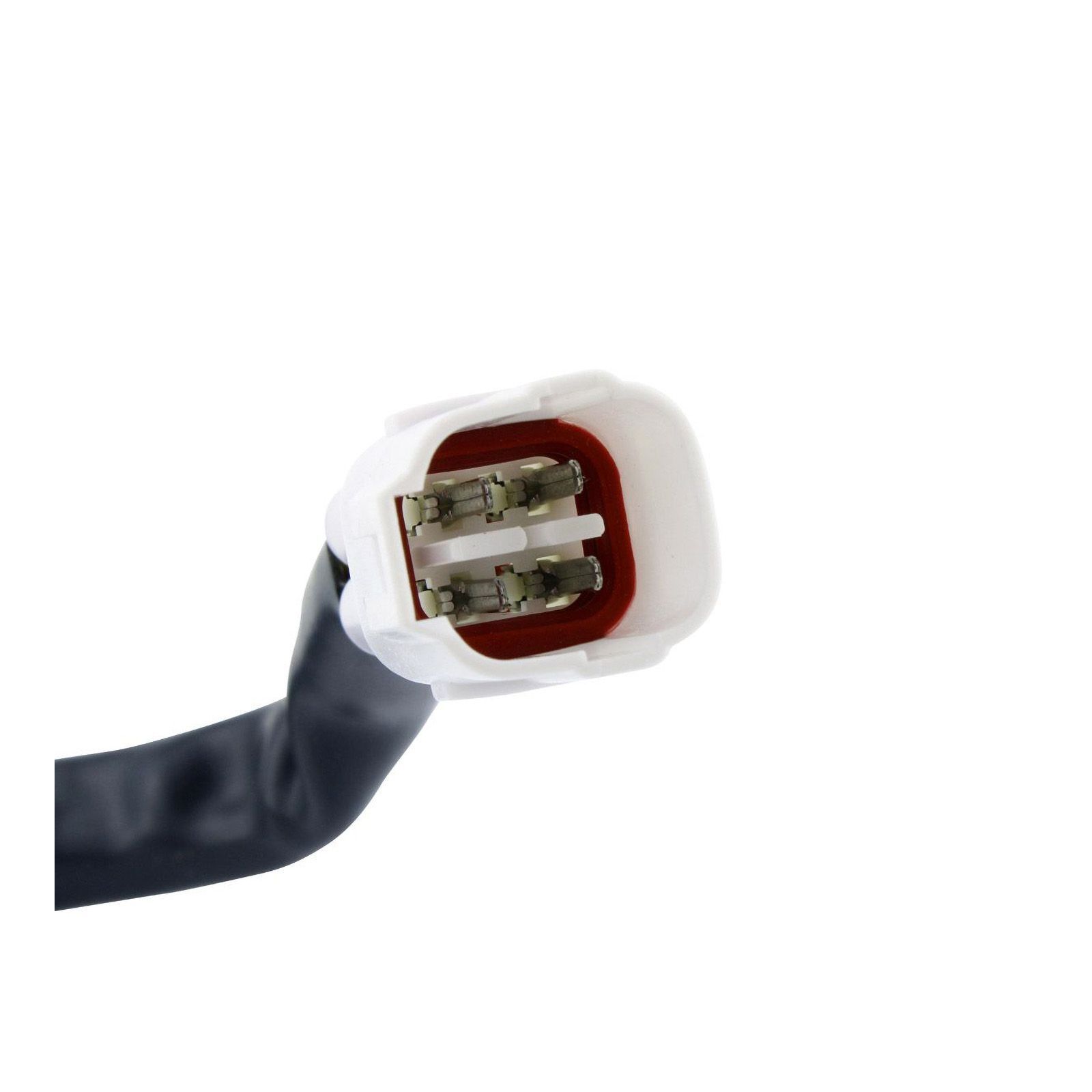

We have even included the opposite connector (main harness side) as we know these are often melted/corroded/defective and a major cause for repetitive electrical issues.



STATOR DIMENSIONS:

• Int erior diameter: 30mm
• Exterior diameter: 85mm
• Thickness: 10mm
• Length of wires stator to grommet: 180mm
• Length of wires grommet to plug: 900mm
• Length of pickup coil's wire to grommet: 90mm
• Number of wires: 4
• Number of plugs: 2
• Number of pins: 4



WIRE TO WIRE RESTISTANCE:

• Pickup: White to Red = 275 ohms +/- 20%
• Alternator: White to Yellow = 0.4 ohms +/- 20%

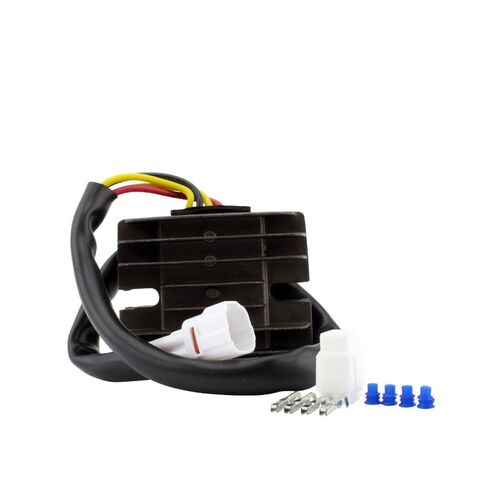

VOLTAGE REGULATOR RECTIFIER DIMENSIONS:

• Width: 63mm
• Length: 78mm
• Height: 26mm
• Fixation holes centre to centre: 60mm
• Wires length: 450mm
• Number of plugs: 1
• Number of pins: 4



HP CDI BOX DIMENSIONS:

• Height: 36mm
• Length: 86mm
• Width: 81mm
• Number of plugs: 2
• Number of pins: 12



PLEASE NOTE:

Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.



Fitment Details

• Yamaha YFZ450 2004
