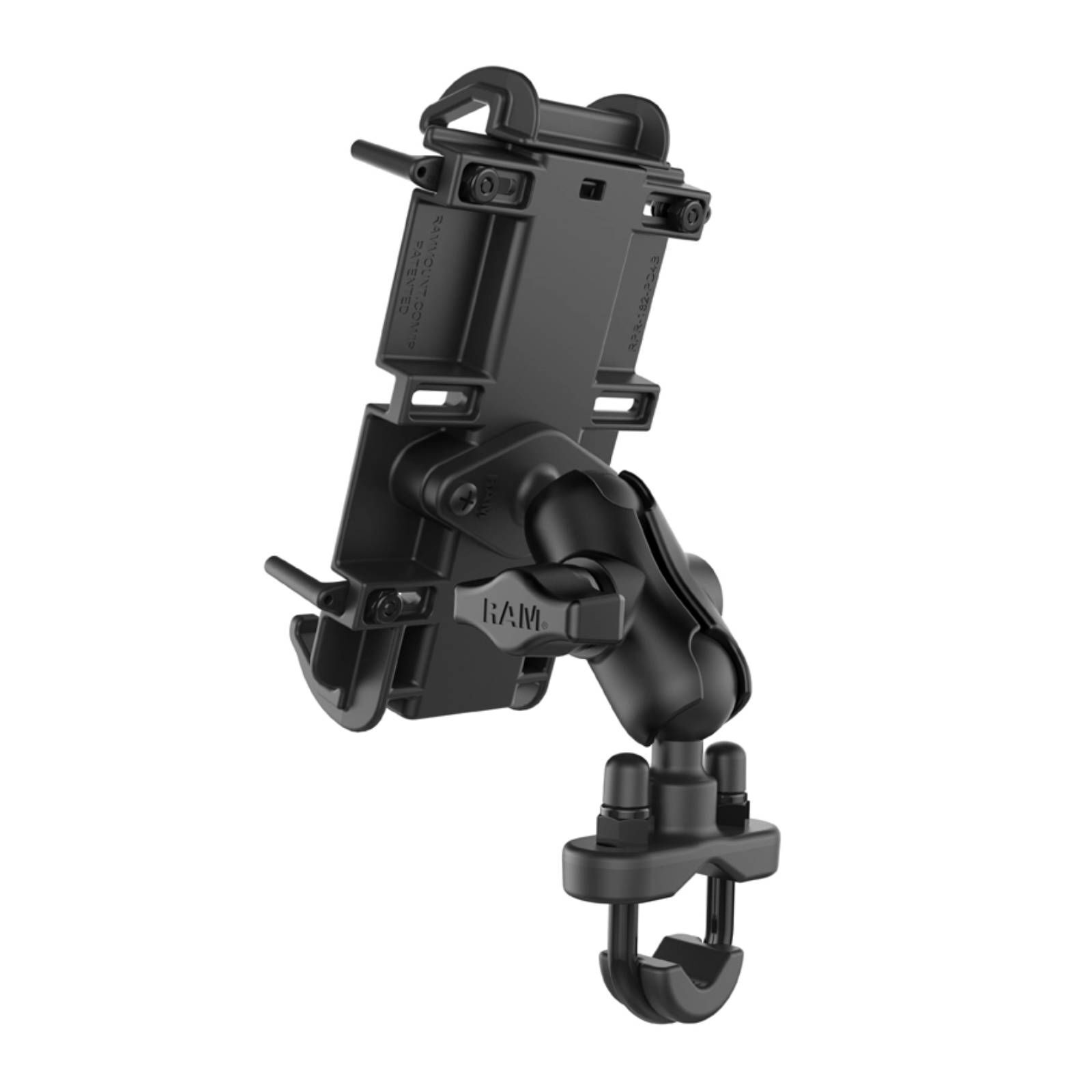

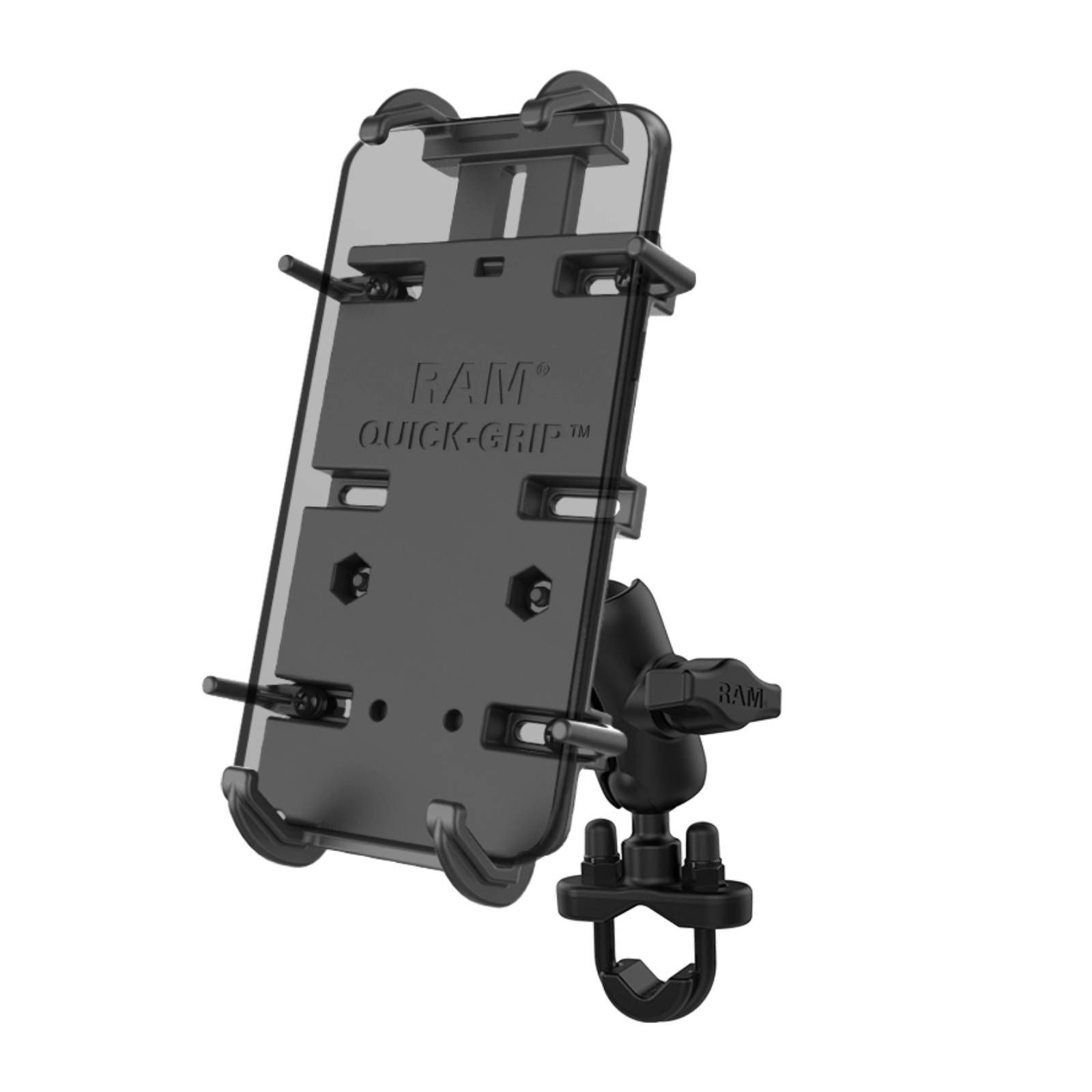

Ram Motorcycle Quick Grip XL Phone Mount With Handlebar UBolt Base

This version of the spring-loaded RAM^® Quick-Grip^™ holder provides a secure fit for a variety of large phones and other devices. The adjustable side keepers ensure that devices like GPS units and Bluetooth speakers within the listed compatible dimensions will also fit in the holder. Included is a short RAM^® double socket arm and zinc-coated handlebar U-Bolt base that accommodates rails from 0.5” to 1.25” in diameter.

FESTURES:

• Spring-loaded holder features adjustable side supports that provide a secure fit for a variety of large phones and other devices; easily insert and remove your phone with one hand

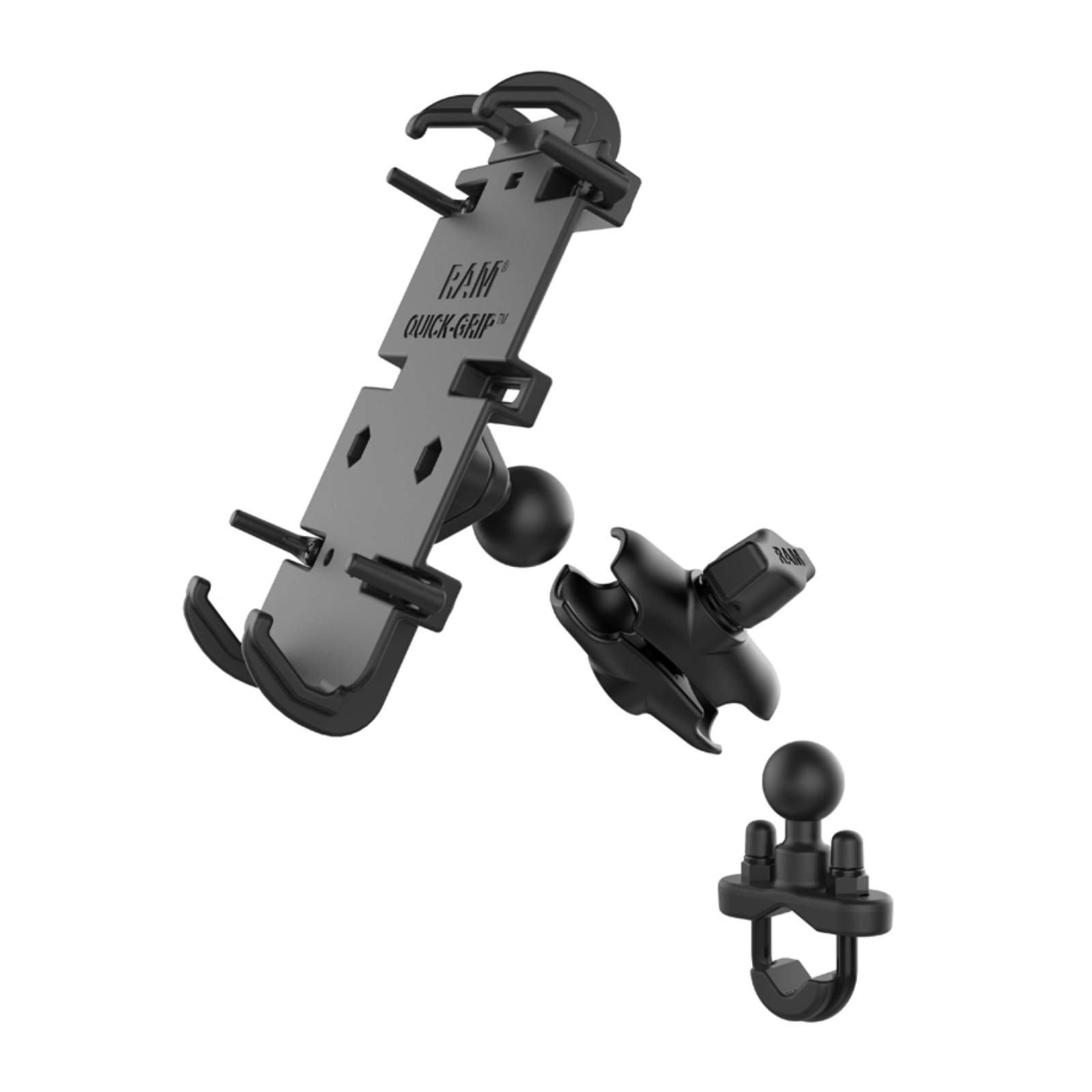

• Includes U-bolt base that accommodates rails from 0.5" to 1.25" in diameter and a short length, B size RAM® double socket arm; ball and socket technology allows for near-infinite adjustability
• Made of powder-coated, marine-grade aluminum and high-strength composite for durability and reliability in the most demanding environments

SPECS:

• CLAMP RANGE: 0.5" (12.7mm) - 1.25" (31.7mm) diameter
• HOLDER DIMENSIONS: Height Range: 5.75" (146mm) - 8.25" (209.5mm), Width Range: 2.625" (66.675mm) - 3.625" (92mm), Max Depth: 0.72" (19mm)
• SOCKET-TO-SOCKET LENGTH: 1.75" (44.4mm)
• BALL SIZE: B Size (1", 25.4mm)

KIT INCLUDES:

• x1 1/4"-20 U-Bolt for 0.5"(12.7mm) - 1" (25.4mm) Rails
• x1 1/4"-20 U-Bolt for 1" (25.4mm) - 1.25"(31.7mm) Rails
• x2 1/4"-20 Nylock Nuts
• x2 Rubber Caps
• x1 U-Bolt Spacer
