Ram Motorcycle Brake/Clutch Reservoir Mount For Garmin Zumo

RAM MOTORCYCLE BRAKE/CLUTCH RESERVOIR MOUNT FOR GARMIN ZUMO

The RAM combination handlebar and brake/clutch reservoir mount provides the ultimate flexibility for mounting to your motorcycle. Mount to either your handlebar or brake/clutch, almost infinite adjustment and perfect viewing angles are provided in this kit.

FEATURES:

• RAM’s patented design also dampens shock and vibration helping to extend the life of your mobile device.
• This product can mount to both the brake/clutch reservoir or any round rail that is 0.5" to 1.25" in diameter.
• To see if the base will mount to your motorcycle, check the hole spacing of the base against your clutch/brake reservoir.
• The holes centers have a minimum width of 0.94" and a maximum of 1.58".

SPECS:

• CLAMP RANGE: 0.5" (12.7mm) - 1.25" (31.7mm) diameter
• SOCKET-TO-SOCKET LENGTH: 1.75" (44.4mm)
• HOLE PATTERN: 4-Hole AMPS: 1.181" (29.9mm) x 1.496" (37.9mm)
• BALL SIZE: B Size (1", 25.4mm)

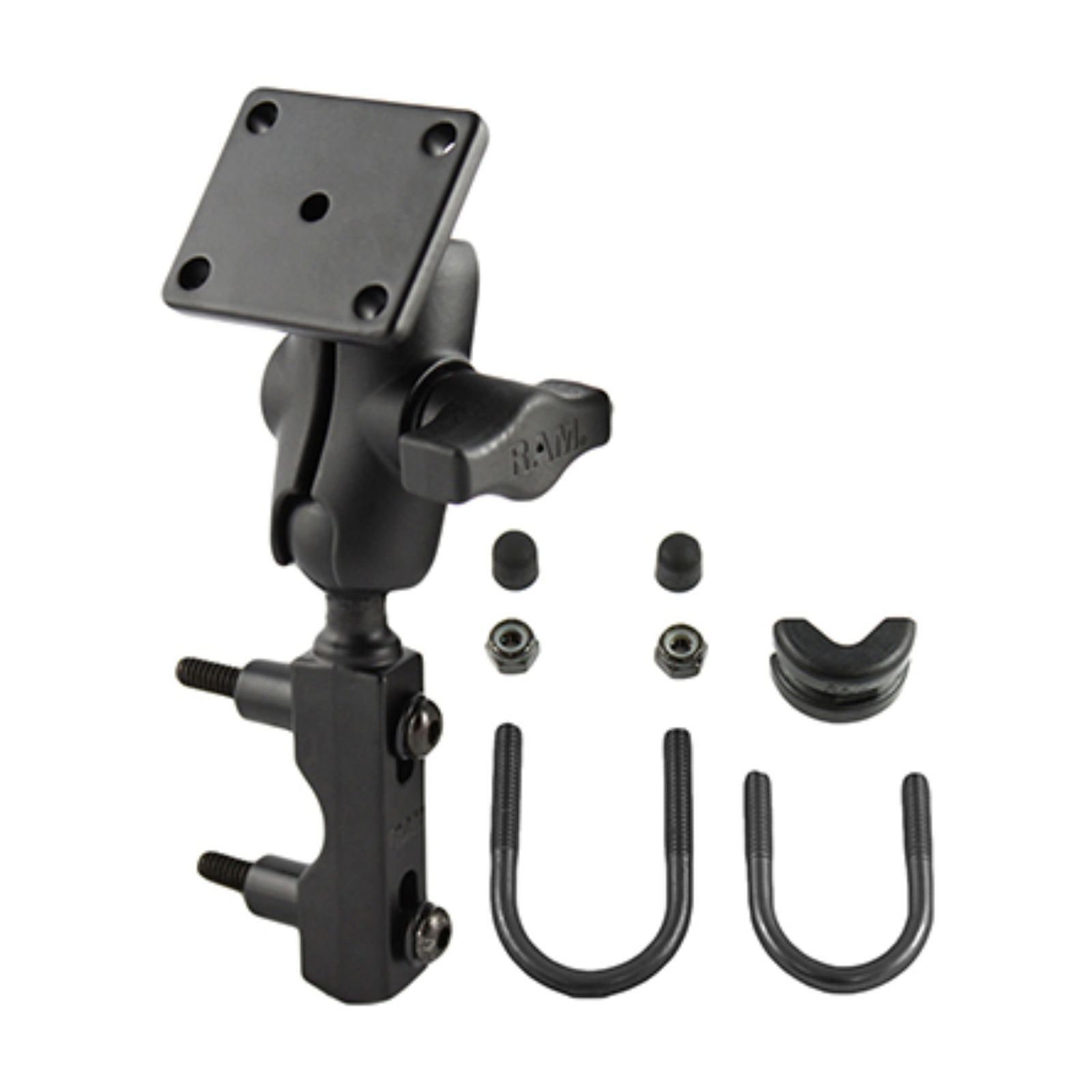

KIT INCLUDES:

• x2 M6 x 55mm Hex Bolts
• x2 #1/4-20 x 2" Hex Bolts
• x2 1/4"-20 x 2.5" Hex Bolts
• x2 1/2" Spacers
• x2 1/4" Split Lock Washers
• x1 1/4"-20 U-Bolt for .5" - 1" Rails
• x1 1/4"-20 U-Bolt for 1" - 1.25" Rails
• x2 1/4"-20 Nylock Nuts
• x2 Rubber Caps
• x1 U-Bolt Spacer

PLEASE NOTE: Online Only
