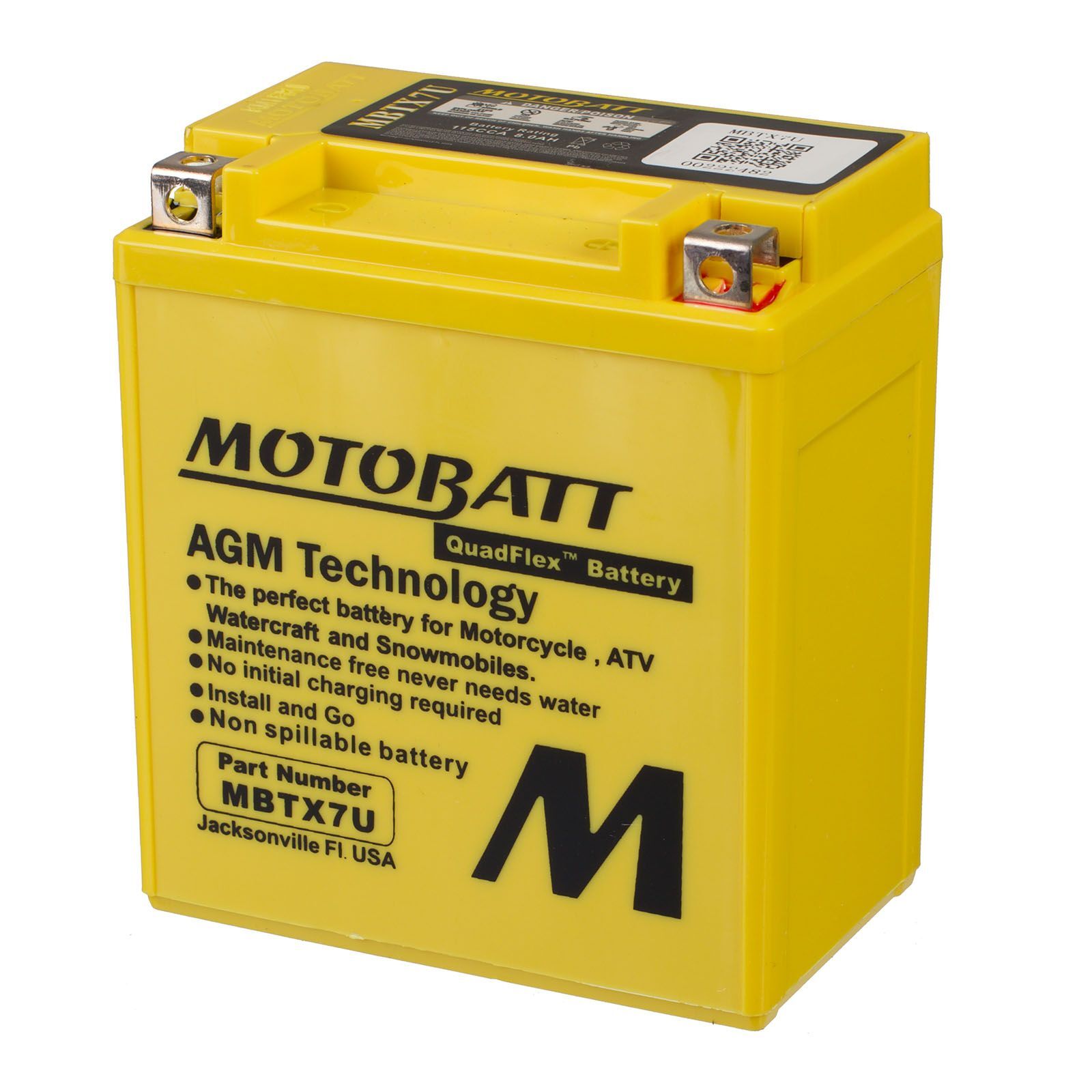

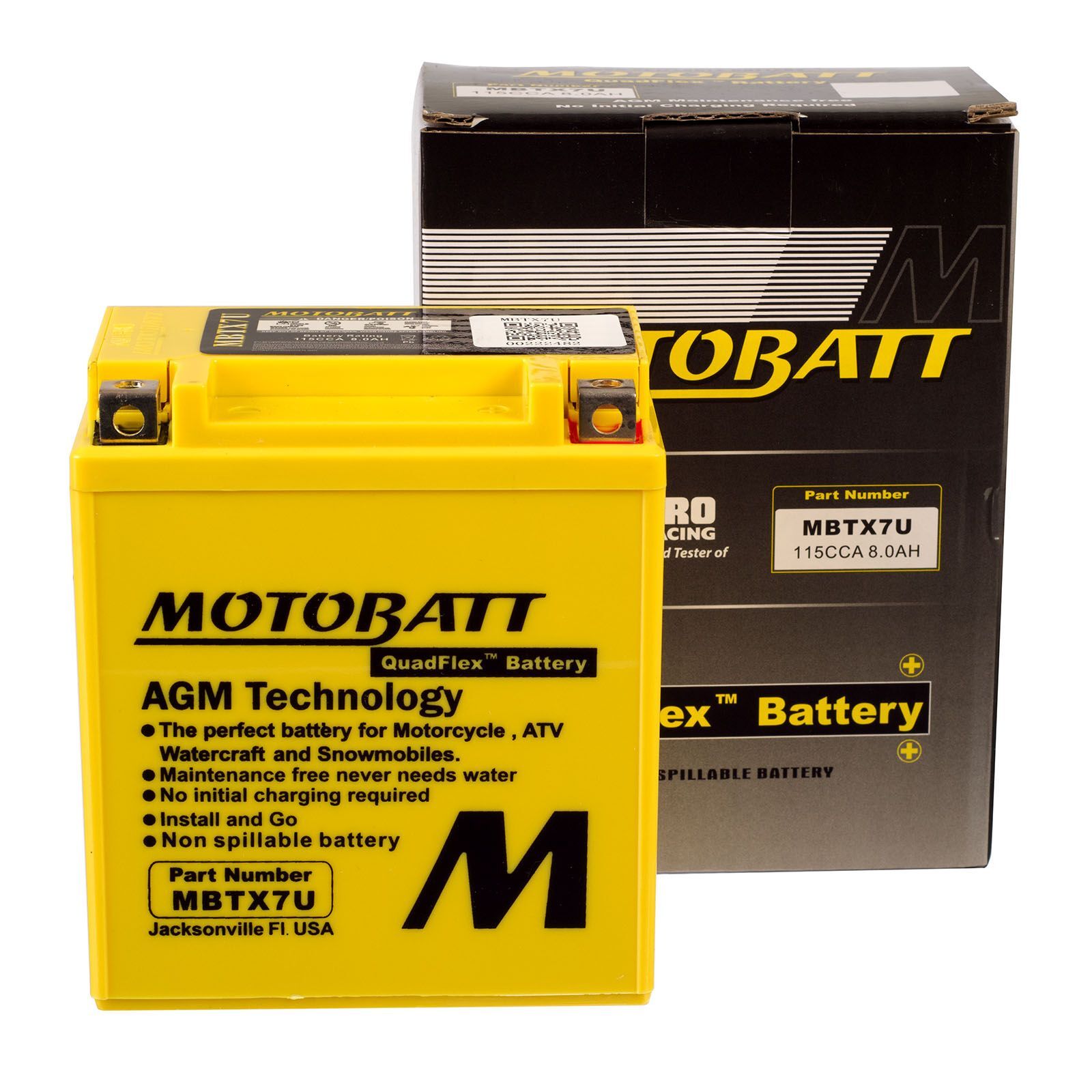

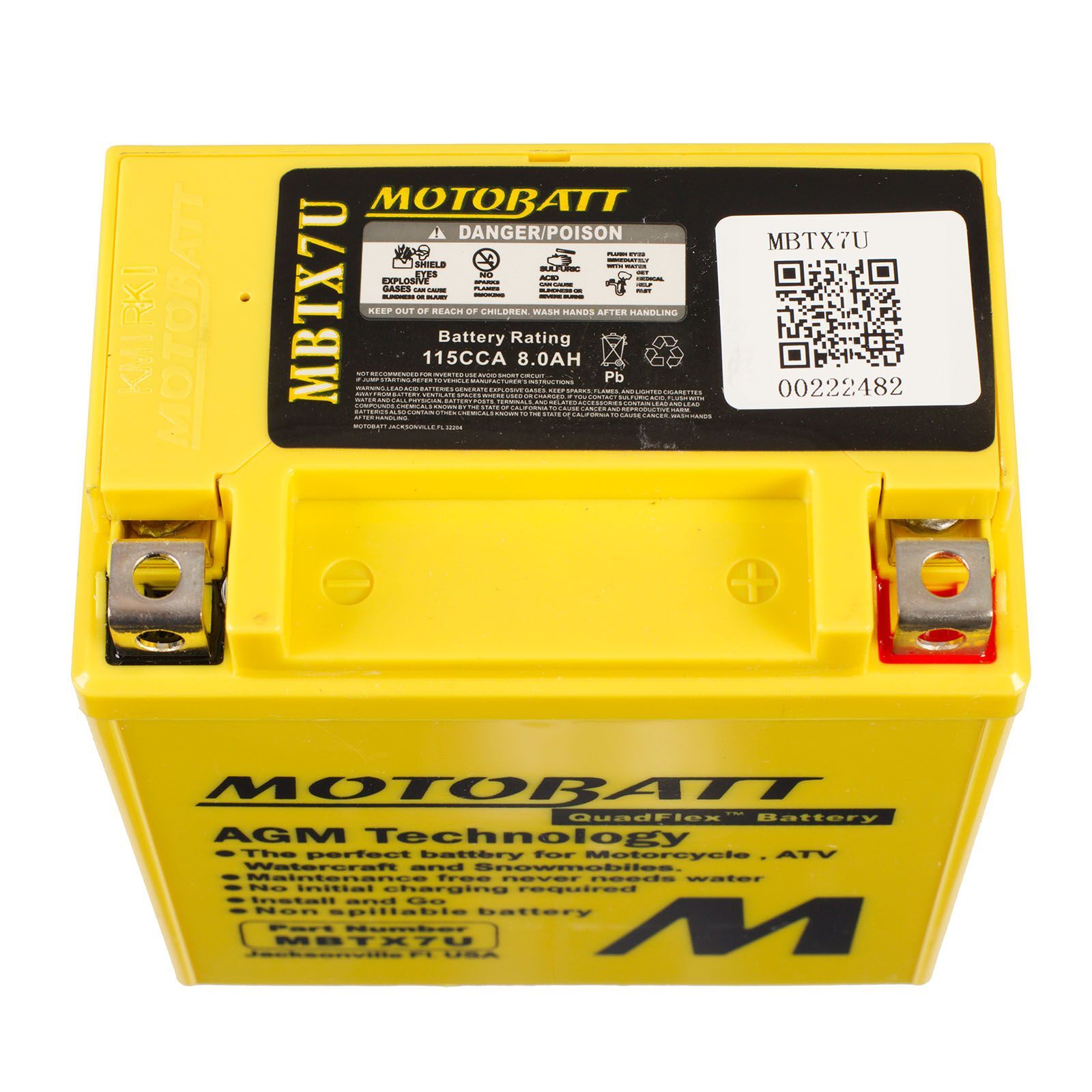

Motobatt Quadflex 12V Motorcycle Battery MBTX7U Fits Yamaha Honda Kawasaki

MOTOBATT QUADFLEX 12V BATTERY MBTX7U

Founded in 2008, Motobatt is a manufacturer of premium Powersports batteries, battery chargers and battery related accessories. Motobatt is the creator and holds patents all over the world for the Motobatt 4 terminal battery that facilitates flexible battery installation across a wide variety of vehicles while maintaining an OE like fit.



SPECS:

• Voltage: 12V
• CCA: 115
• Capacity: 8Ah
• Weight: 2.6kg (5.73lbs)
• Dimensions (LxWxH): 114 x 70 x 128mm (4.49 x 2.76 x 5.04)
• Terminals: 2, M5x2.5 (MPT1)
• Screws: 4, M5x7 (2x MPS1)
• Allen Wrench: 1, 3x3 (MPAK1)
• Terminal Caps: 2, 11x5.5 (MPC1)
• Spacer: None



QUADFLEX:

Motobatt batteries are manufactured from Absorbed Glass Mat (AGM), this design has revolutionised the motorcycle, ATV, lawnmower and small engine industry. QuadFlex provides a unique four-terminal design with two positives, two negatives along with height spacers that permit an almost universal fit. All Motobatt AGM Batteries are maintenance free, non-hazardous, non-spill, charged and ready to install directly out of the box.

Each plate in the battery is wrapped in a fiberous glass matting which not only absorbs all liquid electrolyte but keeps the plates separated in a cushioned environment. This stops the plates from vibrating which can breakdown the plate and cause short circuits between the plates or break plate welds which result in battery failure. The thick, heavy plates used in Motobatt designs really make the difference.

AGM batteries also have a much lower inherent self-discharge rate than wet flooded types. And, as a higher amp hour AGM battery, the Motobatt battery can also discharge more deeply and recover repeatedly under the vehicle alternator charge or through maintenance charging. A standard flooded cell battery is not capable of withstanding this type of cycling without premature failure.

Your Motobatt is a Factory Activated battery, it comes to you pre-conditioned and fully charged for optimum performance and ready to install out of the box. 80% of early Powersports battery failure is caused by faulty activation of the dry battery plates. Additionally, you never have to mess with acid or top up fluid levels or remove corrosion from the terminals caused by gassing, which are all common with standard flooded battery types.



FEATURES:

• Patented QuadFlex multi-fit terminals
• Absorbed Glass Mat technology – ensures greater protection against vibration and gives a longer lifecycle
• Fully sealed – Can be mounted and transported in any position
• No initial charging – Install and go, charged right out of the box
• Maintenance Free – No messy acid to worry about
• 20% more cold cranking amps (CCA)
• Easy accessory connection with multiple terminals



PLEASE NOTE: Image for illustration only.



DISCLAIMER:

Battery may have lost charge due to shelf life. please charge prior to use.

Fitment Details

• Kawasaki KLX250R 1994
• Kawasaki KLX250R 1995
• Yamaha XT250 225CC 1995
• Kawasaki KLX250R 1996
• Suzuki DR200SE TROJAN 1996
• Yamaha XT250 225CC 1996
• Kawasaki KLX250R 1997
• Suzuki DR200SE TROJAN 1997
• Yamaha XT250 225CC 1997
• Kawasaki KLX250R 1998
• Suzuki DR200SE TROJAN 1998
• Yamaha XT250 225CC 1998
• Kawasaki KL250 SUPER SHERPA 1999
• Kawasaki KLX250R 1999
• Suzuki DR200SE TROJAN 1999
• Yamaha XT250 225CC 1999
• Kawasaki KL250 STOCKMAN 2000
• Kawasaki KL250 SUPER SHERPA 2000
• Kawasaki KLX250R 2000
• Suzuki DR200SE TROJAN 2000
• Yamaha XT250 225CC 2000
• Kawasaki KL250 STOCKMAN 2001
• Kawasaki KL250 SUPER SHERPA 2001
• Kawasaki KLX250R 2001
• Suzuki DR200SE TROJAN 2001
• Yamaha XT250 225CC 2001
• Kawasaki KL250 STOCKMAN 2002
• Kawasaki KL250 SUPER SHERPA 2002
• Kawasaki KLX250R 2002
• Suzuki DR200SE TROJAN 2002
• Yamaha XT250 225CC 2002
• Kawasaki KL250 STOCKMAN 2003
• Kawasaki KL250 SUPER SHERPA 2003
• Kawasaki KLX250R 2003
• Suzuki DR200SE TROJAN 2003
• Yamaha XT250 225CC 2003
• Kawasaki KL250 STOCKMAN 2004
• Kawasaki KL250 SUPER SHERPA 2004
• Kawasaki KLX250R 2004
• Suzuki DR200SE TROJAN 2004
• TM EN 530F 2004
• TM MX 250F 2004
• Yamaha XT250 225CC 2004
• Kawasaki KL250 STOCKMAN 2005
• Kawasaki KL250 SUPER SHERPA 2005
• Kawasaki KLX250R 2005
• Suzuki DR200SE TROJAN 2005
• TM EN 450F 2005
• TM EN 530F 2005
• TM MX 250F 2005
• Yamaha XT250 225CC 2005
• Kawasaki KL250 STOCKMAN 2006
• Kawasaki KL250 SUPER SHERPA 2006
• Kawasaki KLX250R 2006
• Suzuki DR200SE TROJAN 2006
• TM EN 450F 2006
• TM EN 530F 2006
• TM MX 250F 2006
• Yamaha XT250 225CC 2006
• Kawasaki KL250 STOCKMAN 2007
• Kawasaki KL250 SUPER SHERPA 2007
• Kawasaki KLX250R 2007
• Suzuki DR200SE TROJAN 2007
• TM EN 450F 2007
• TM EN 530F 2007
• TM MX 250F 2007
• Yamaha XT250 225CC 2007
• Kawasaki KL250 STOCKMAN 2008
• Kawasaki KLX140 2008
• Kawasaki KLX140L BIG WHEEL 2008
• Suzuki DR200SE TROJAN 2008
• TM EN 450F 2008
• TM EN 530F 2008
• TM MX 250F 2008
• Kawasaki KL250 STOCKMAN 2009
• Kawasaki KLX140 2009
• Kawasaki KLX140L BIG WHEEL 2009
• Kawasaki KLX250S 2009
• Suzuki DR200SE TROJAN 2009
• TM EN 450F 2009
• TM EN 530F 2009
• TM MX 250F 2009
• Kawasaki KL250 STOCKMAN 2010
• Kawasaki KLX140 2010
• Kawasaki KLX140L BIG WHEEL 2010
• Kawasaki KLX250S 2010
• Suzuki DR200SE TROJAN 2010
• TM EN 450F 2010
• TM EN 530F 2010
• TM MX 250F 2010
• Kawasaki KL250 STOCKMAN 2011
• Kawasaki KLX140 2011
• Kawasaki KLX140L BIG WHEEL 2011
• Kawasaki KLX250S 2011
• Suzuki DR200SE TROJAN 2011
• TM EN 450F 2011
• TM EN 530F 2011
• TM MX 250F 2011
• Kawasaki KL250 STOCKMAN 2012
• Kawasaki KLX140 2012
• Kawasaki KLX140L BIG WHEEL 2012
• Kawasaki KLX250S 2012
• Suzuki DR200SE TROJAN 2012
• TM EN 450F 2012
• TM EN 530F 2012
• TM MX 250F 2012
• Honda CRF250L 2013
• Kawasaki KL250 STOCKMAN 2013
• Kawasaki KLX140 2013
• Kawasaki KLX140L BIG WHEEL 2013
• Kawasaki KLX250S 2013
• Suzuki DR200SE TROJAN 2013
• Honda CRF250L 2014
• Kawasaki KL250 STOCKMAN 2014
• Kawasaki KLX140 2014
• Kawasaki KLX140L BIG WHEEL 2014
• Kawasaki KLX150L 2014
• Kawasaki KLX250S 2014
• Suzuki DR200SE TROJAN 2014
• Honda CRF250L 2015
• Kawasaki KL250 STOCKMAN 2015
• Kawasaki KLX140 2015
• Kawasaki KLX140L BIG WHEEL 2015
• Kawasaki KLX150BF (KLX150F) 2015
• Kawasaki KLX150L 2015
• Kawasaki KLX250S 2015
• Suzuki DR200SE TROJAN 2015
• Honda CRF250L 2016
• Kawasaki KL250 STOCKMAN 2016
• Kawasaki KLX140 2016
• Kawasaki KLX140L BIG WHEEL 2016
• Kawasaki KLX150BF (KLX150F) 2016
• Kawasaki KLX250S 2016
• Suzuki DR200SE TROJAN 2016
• Honda CRF250L 2017
• Honda CRF250RL RALLY ABS 2017
• Honda XR190 (AG-XR) 2017
• Kawasaki KL250 STOCKMAN 2017
• Kawasaki KLX140 2017
• Kawasaki KLX140L BIG WHEEL 2017
• Kawasaki KLX150BF (KLX150F) 2017
• Kawasaki KLX250S 2017
• Suzuki DR200S 2017
• Suzuki DR200SE TROJAN 2017
• Yamaha AG125 2017
• Honda CRF250L 2018
• Honda CRF250RL RALLY ABS 2018
• Honda XR190 (AG-XR) 2018
• Kawasaki KL250 STOCKMAN 2018
• Kawasaki KLX140 2018
• Kawasaki KLX140L BIG WHEEL 2018
• Kawasaki KLX150BF (KLX150F) 2018
• Kawasaki KLX250S 2018
• Suzuki DR200S 2018
• Suzuki DR200SE TROJAN 2018
• Yamaha AG125 2018
• Honda CB500X 2019
• Honda CRF250L 2019
• Honda CRF250RL RALLY ABS 2019
• Honda XR190 (AG-XR) 2019
• Kawasaki KL250 STOCKMAN 2019
• Kawasaki KLX140 2019
• Kawasaki KLX140L BIG WHEEL 2019
• Kawasaki KLX150BF (KLX150F) 2019
• Kawasaki KLX250S 2019
• Suzuki DR200S 2019
• Suzuki DR200SE TROJAN 2019
• Yamaha AG125 2019
• Honda CB500X 2020
• Honda CRF250L 2020
• Honda CRF250RL RALLY ABS 2020
• Honda XR190 (AG-XR) 2020
• Kawasaki KL250 STOCKMAN 2020
• Kawasaki KLX140 2020
• Kawasaki KLX140L BIG WHEEL 2020
• Kawasaki KLX150BF (KLX150F) 2020
• Kawasaki KLX250S 2020
• Suzuki DR200S 2020
• Suzuki DR200SE TROJAN 2020
• Yamaha AG125 2020
• Honda CRF300 RALLY 2021
• Honda CRF300L 2021
• Honda XR190 (AG-XR) 2021
• Kawasaki KL250 STOCKMAN 2021
• Kawasaki KLX140 2021
• Kawasaki KLX140L BIG WHEEL 2021
• Kawasaki KLX150BF (KLX150F) 2021
• Kawasaki KLX250S 2021
• Suzuki DR200S 2021
• Suzuki DR200SE TROJAN 2021
• Yamaha AG125 2021
• Honda CRF300 RALLY 2022
• Honda CRF300L 2022
• Honda XR190 (AG-XR) 2022
• Kawasaki KL250 STOCKMAN 2022
• Kawasaki KLX140 2022
• Kawasaki KLX140L BIG WHEEL 2022
• Kawasaki KLX150BF (KLX150F) 2022
• Kawasaki KLX250S 2022
• Suzuki DR200S 2022
• Suzuki DR200SE TROJAN 2022
• Yamaha AG125 2022
• Honda CRF300 RALLY 2023
• Honda CRF300L 2023
• Honda XR190 (AG-XR) 2023
• Kawasaki KL250 STOCKMAN 2023
• Kawasaki KLX140 2023
• Kawasaki KLX140L BIG WHEEL 2023
• Kawasaki KLX150BF (KLX150F) 2023
• Suzuki DR200SE TROJAN 2023
• Yamaha AG125 2023
• Yamaha AG125 2024
