KTM 520 SX 2000-2002 Hotcams 8.90mm Valve Shim Kit

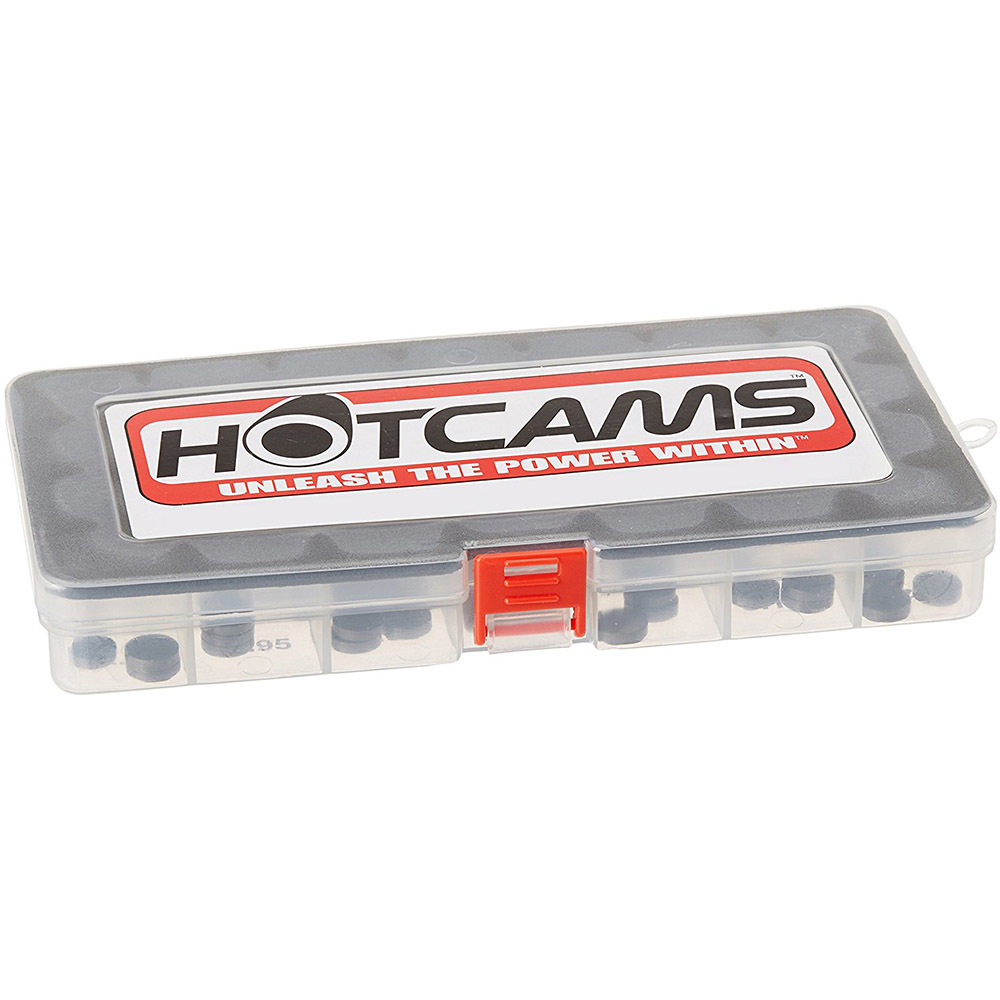

HOTCAMS VALVE SHIM KIT

The Hot Cams Valve Shim Kit is a must for any motorcycle to keep it running at full power.

FEATURES:

• Hot Cams includes an labeled organizer to ensure accurate shim replacement.
• 7.48 mm and 9.48 mm kits:
• Include three (3) shims for each size ranging from 1.20 through 3.50 mm in 0.05 mm increments.

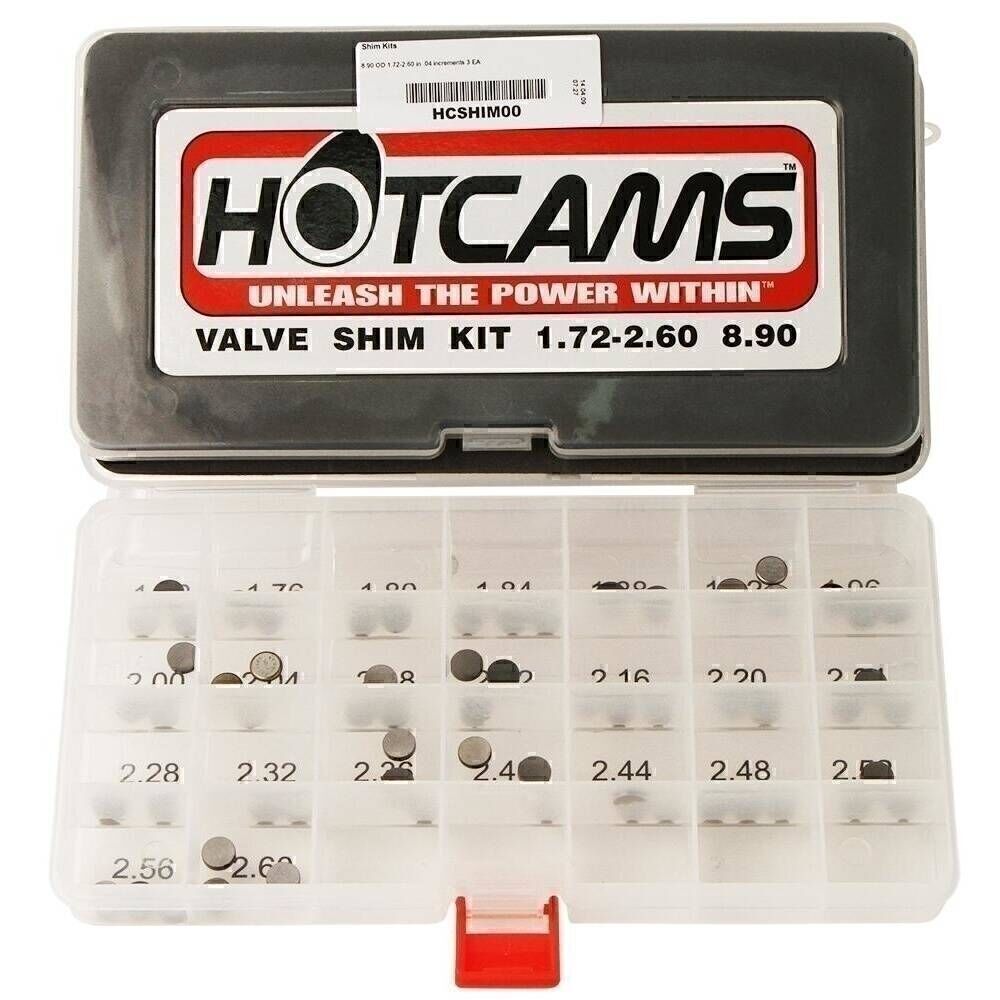

• 8.90 mm kit:
• Includes three (3) shims for each size ranging from 1.72 through 2.60 mm in 0.05 mm increments.
• 10.00 mm kit:
• Includes three (3) shims for each size ranging from 1.85 through 3.25 mm in 0.05 mm increments.

Please Note: Most 250cc 4-strokes use 7.48 mm OD shims, most 400cc and up 4-strokes use 9.48 mm OD shims, and KTM models use 10 or 8.90 mm OD shims.

Please note: Images for illustration only. Correct parts will be supplied.

Fitment Details

• KTM 520 SX 2000
• KTM 520 SX 2001
• KTM 520 SX 2002
