Kawasaki KLR650 1987 - 2022 Denali Powerhub2 Motorcycle Power Distribution Module

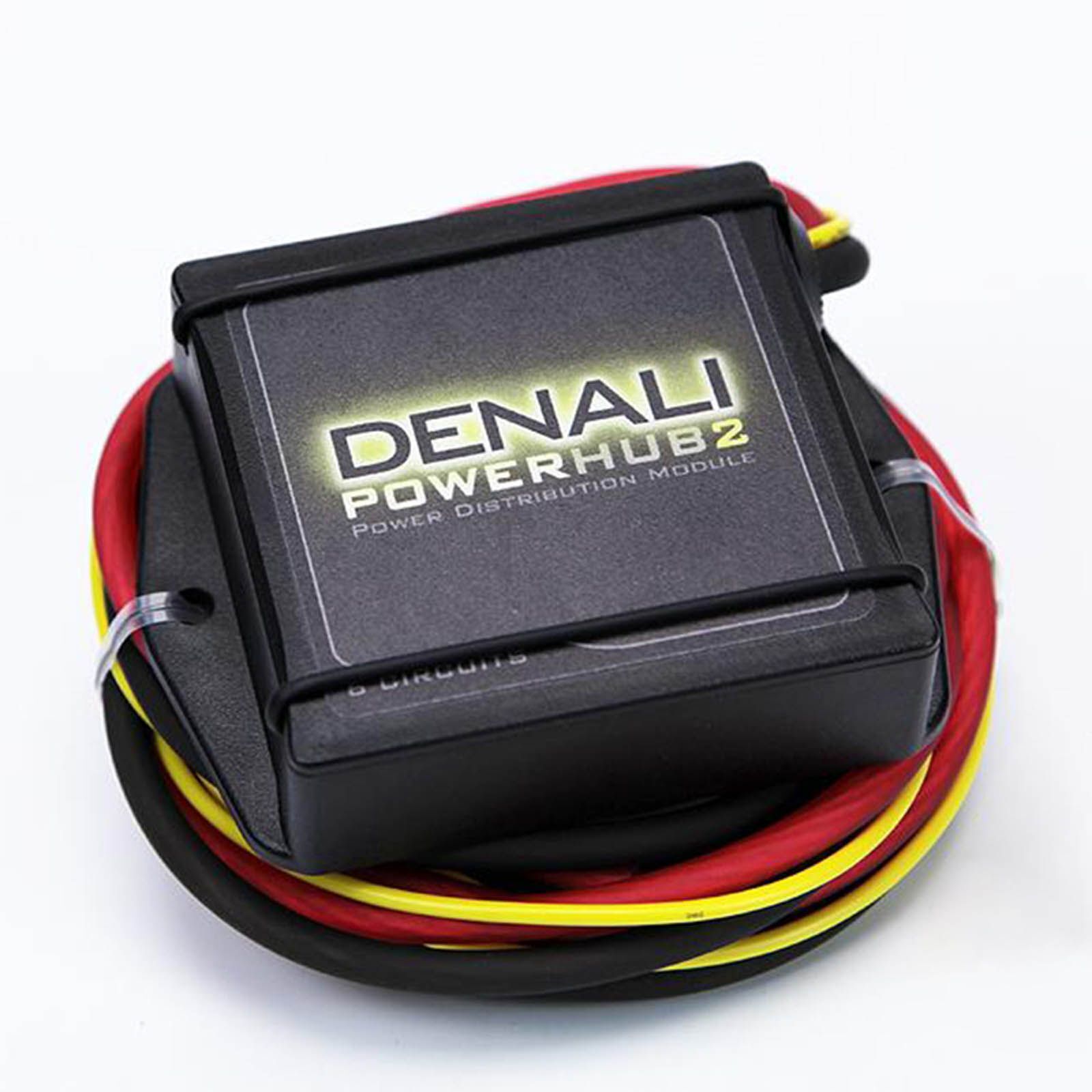

DENALI POWERHUB 2 POWER DISTRIBUTION MODULE

The PowerHub2 Power Distribution Module allows you to safely connect up to six electronic devices to your vehicle in a clean, professional manner by consolidating all the battery connections and fuses into one compact housing. It features six fused accessory circuits with both positive and negative terminals. Each circuit is rated for up to 15 Amps while the whole PowerHub unit is rated up to 30 Amps. The six outputs can be individually set as "always on" or "switched" which will turn your accessories on/off with the ignition of the motorcycle.

FEATURES:

• Safely and cleanly connect six accessories to your vehicle
• Consolidates all accessory wiring into one central hub
• Provides easy access to vehicle power
• Choice between switched and constant power
• Replaceable 30 amp Tyco/Bosch micro relay
• Water-resistant
• Compact durable housing
• CANbus compatible
• Specs
• Dimensions: L 3" x W 4" x H 1"
• 6 circuits can handle up to 15 Amps each
• Whole unit can handle up to 30 Amps
• 60 inch long, 10 gauge power leads with ring terminals

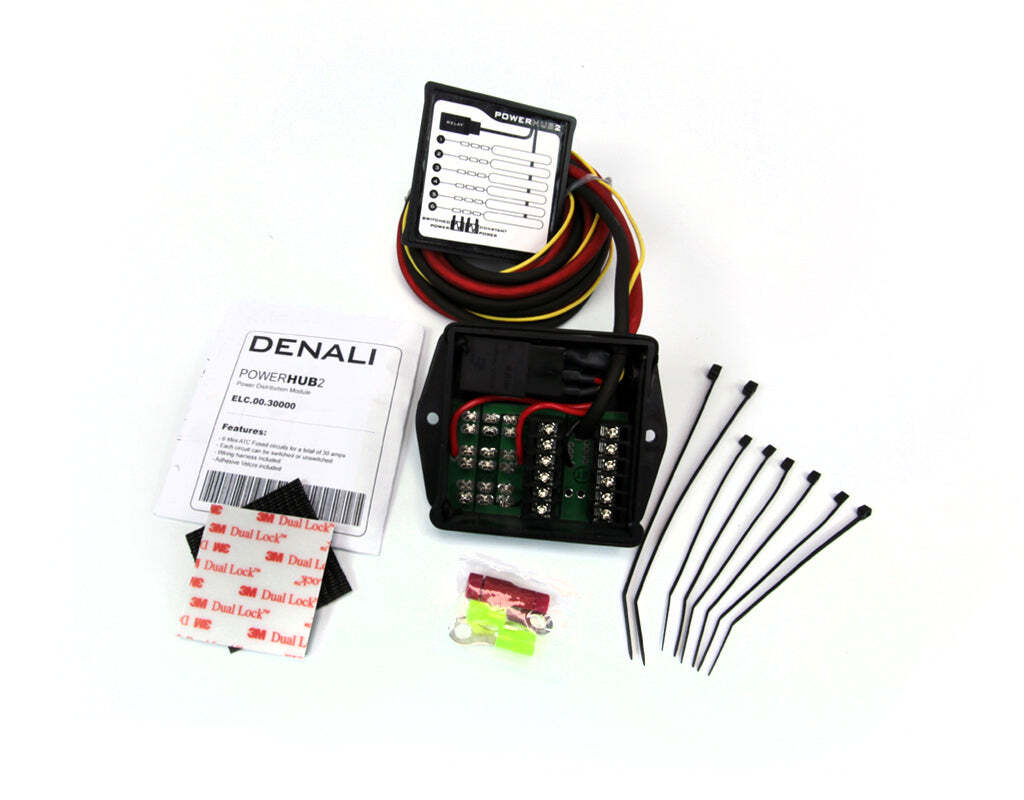

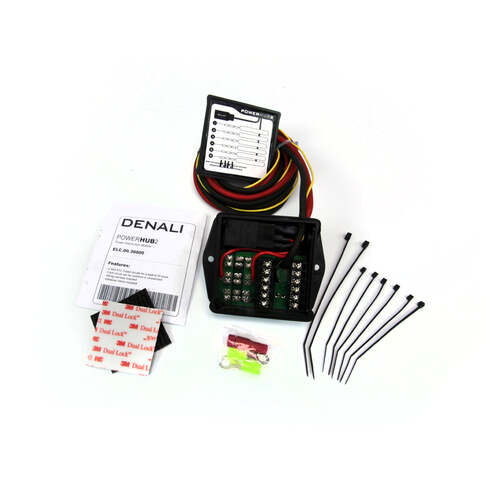

WHAT'S IN THE BOX?

• PowerHub2 Power Distribution Module
• (x2) Ring terminals
• (x1) Posi-Tap
• (x1) Adhesive hook and loop pad

Installation Note: The proper rated Mini ATM fuse must be used in each circuit. (SOLD SEPARATELY)

PLEASE NOTE: ONLINE ONLY

Fitment Details

• Kawasaki KLR650 1987
• Kawasaki KLR650 1988
• Kawasaki KLR650 1989
• Kawasaki KLR650 1990
• Kawasaki KLR650 1991
• Kawasaki KLR650 1992
• Kawasaki KLR650 1993
• Kawasaki KLR650 1994
• Kawasaki KLR650 1995
• Kawasaki KLR650 1996
• Kawasaki KLR650 1997
• Kawasaki KLR650 1998
• Kawasaki KLR650 1999
• Kawasaki KLR650 2000
• Kawasaki KLR650 2001
• Kawasaki KLR650 2002
• Kawasaki KLR650 2003
• Kawasaki KLR650 2004
• Kawasaki KLR650 2005
• Kawasaki KLR650 2006
• Kawasaki KLR650 2007
• Kawasaki KLR650 2008
• Kawasaki KLR650 2009
• Kawasaki KLR650 2010
• Kawasaki KLR650 2011
• Kawasaki KLR650 2012
• Kawasaki KLR650 2013
• Kawasaki KLR650 2014
• Kawasaki KLR650 2015
• Kawasaki KLR650 2016
• Kawasaki KLR650 2017
• Kawasaki KLR650 2018
• Kawasaki KLR650 2019
• Kawasaki KLR650 2020
• Kawasaki KLR650 2021
• Kawasaki KLR650 2022
