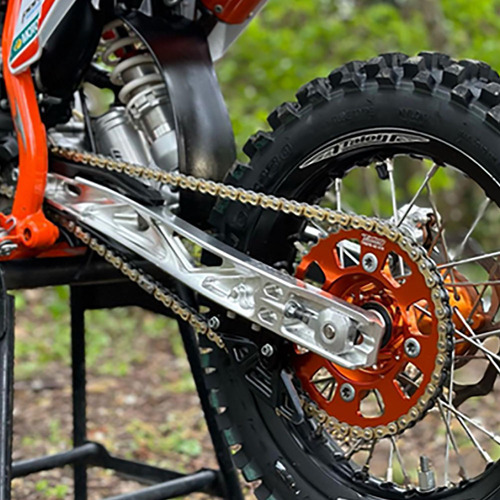

Husqvarna TC50 2017 - 2019 Talon MX Motorcycle Silver Swing Arm Inc Chain Guide

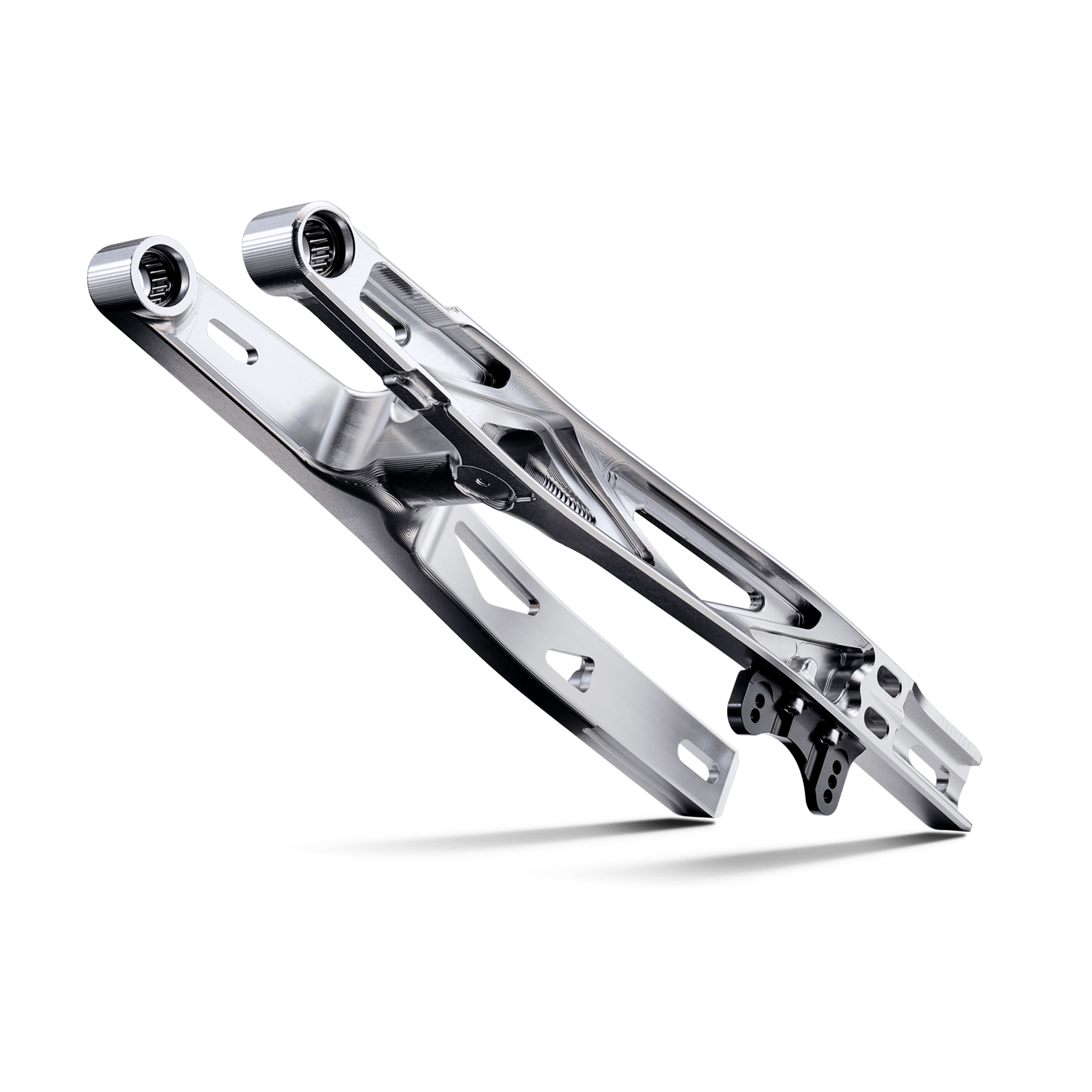

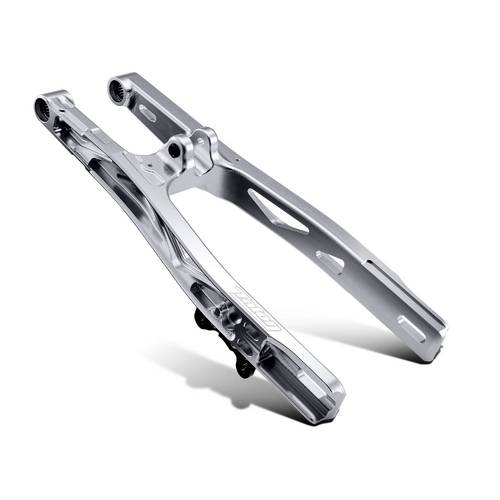

TALON RACING MX MOTORCYCLE EXTENDED SWINGARM - BILLET ALLOY

Talon swing arms are CNC machined in-house in the UK, from a single billet of 6082-T6 aerospace-grade aluminium using industry-leading materials and manufacturing processes. Their latest swingarm has a 673g or 26.7% mass saving over the current market leader, this is a significant saving on a 40kg machine with an on-average 20-40kg rider!

The latest Talon swingarm also has increased compliance (18.158% Average increase, 17.446% in torsion, 18.122% longitudinally and 18.887% laterally).This will benefit the rider as increased compliance and reduced mass allow for greater control.

A reduced swingarm mass will also have great suspension benefits; due to a reduction in un-sprung mass, the suspension and rear-wheel assembly can accelerate at a greater rate keeping the wheel tracking the ground at a higher speed (less likely to “bounce” and become unsteady in whoops or rapid movements). Also, as the shock sees less force it will not be as prone to overheating and therefore the damping performance won’t suffer over a longer race as much as a heavier swingarm.

Suspension Effects: Due to a reduction in un-sprung mass the suspension and rear wheel assembly can accelerate at a greater rate keeping the wheel tracking the ground at a higher speed (less likely to "bounce" and become unsteady in whoops or rapid movements). Also, as the shock sees less force it will not be as prone to overheating and therefore damping performance won't suffer over a longer race as much as a heavier swingarm.

FEATURES:

• Careful design and machining from a single Billet of 6082-T6 Aerospace Grade Aluminium
• Increased compliance and reduced mass allow for greater control.
• Industry leading materials and manufacturing processes.
• Reduced Swingarm Mass
• Stronger than stock
• Additional +5mm of adjustment in swingarm length, an extra position of chain guide adjustment for larger sprockets
• CNC machined in house in the UK
• Greater Adjustment than current market leader
• Premium quality and high performance
• Used by Factory Race Teams all over the world
• Increased compliance of the swingarm allows for a more confidence-inspiring feel so that youngsters can push the limits harder through rough sections and have better control during hard landings.

SPECIFICATIONS:

• Pivot-to-Axle Centre 425mm (16.7323in) at shortest adjustment, 450mm (17.7165in) at longest adjustment. (OEM 2022 KTM SX50 2022 is 377mm-395mm, Market Leader is 423.5mm-445mm)
• 1848g (4.07lb) (OEM 2022 KTM SX50 is 1494g, previous extended swingarm was 2521g)
• If using the swingarm with a pre-2020 machine, 2020-onwards HARDWARE MUST BE USED.
• Material: CNC- Machined 6082-T6
• Coating: Silver Type II Anodization
• Ancillary fitment: OEM KTM Items can be used throughout when the swingarm is used with a 2020-onwards machine, this includes the following components:
• Chain Slider (45404066000) x1
• Chain Slider Bolts (83008000012) x2
• Lower Shock Bolt (77204089000) x1
• Shock Bolt Thread Insert (69004095000) x1
• Chain Adjuster Bolt (50203030090) x2
• Chain Adjuster Nut (46030045000) x2
• Brake Line Guide (45413047000) x1
• Brake Line Guide Bolt (0009050106) x2
• Chain Guide (4630766010) x1
• Chain Guide Bolt Front (0025060406) x1
• Chain Guide Bolt Rear (0025060166) x1
• The following is offered from KTM as a kit under the following part number (45204230010)
• Spacer Bush (46004030070) x4
• Bearing Bush (46004030071) x2
• Bush O-Ring (0770160021) x4
• Swingarm Pivot Bearings (54603097000) x2 (20x26x16 Needle Roller Bearing)

Image for reference only product may vary slightly

Fitment Details

• Husqvarna TC50 2017
• Husqvarna TC50 2018
• Husqvarna TC50 2019
