Honda TRX300 2WD FOURTRAX 1999 - RMSTATOR High Performance Cdi

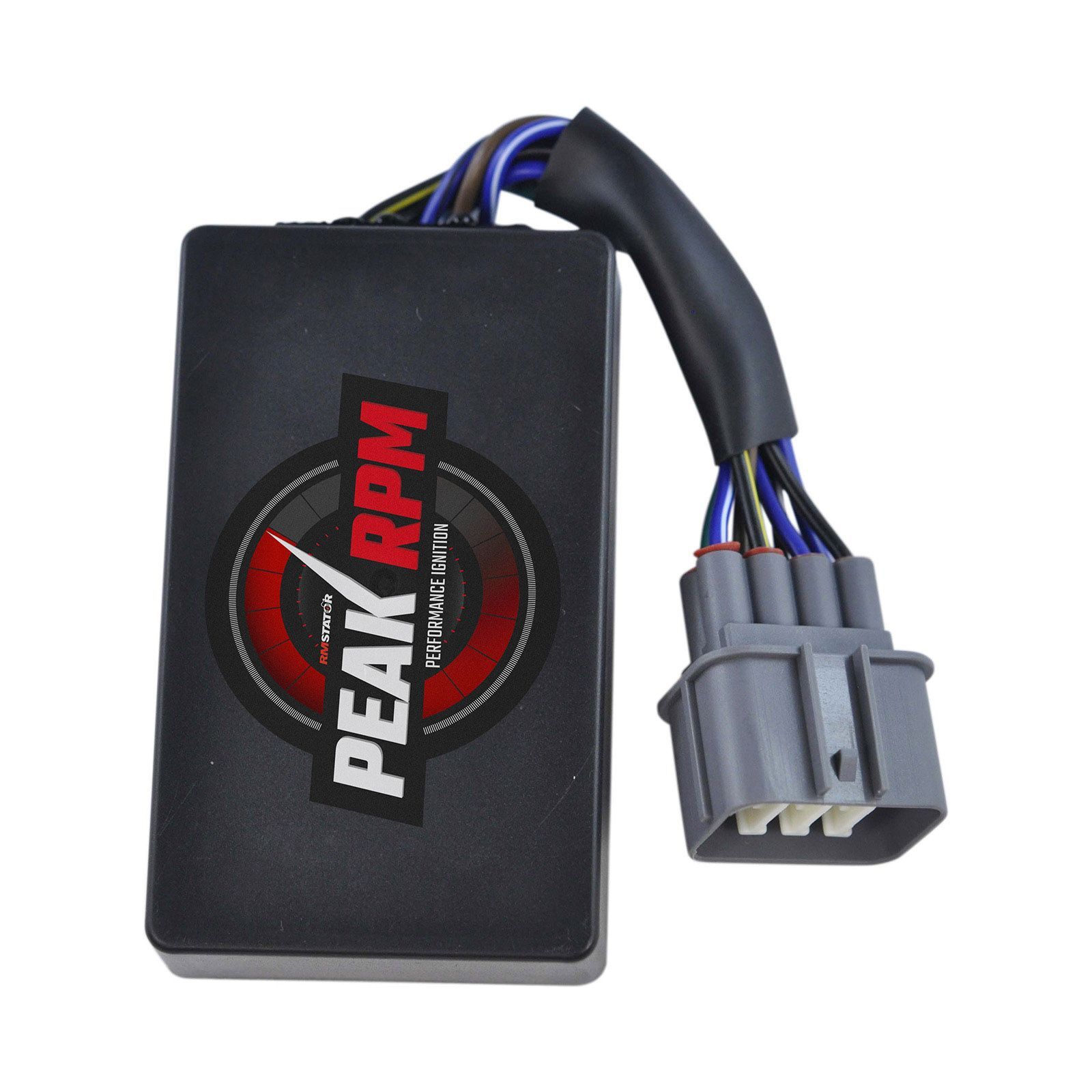

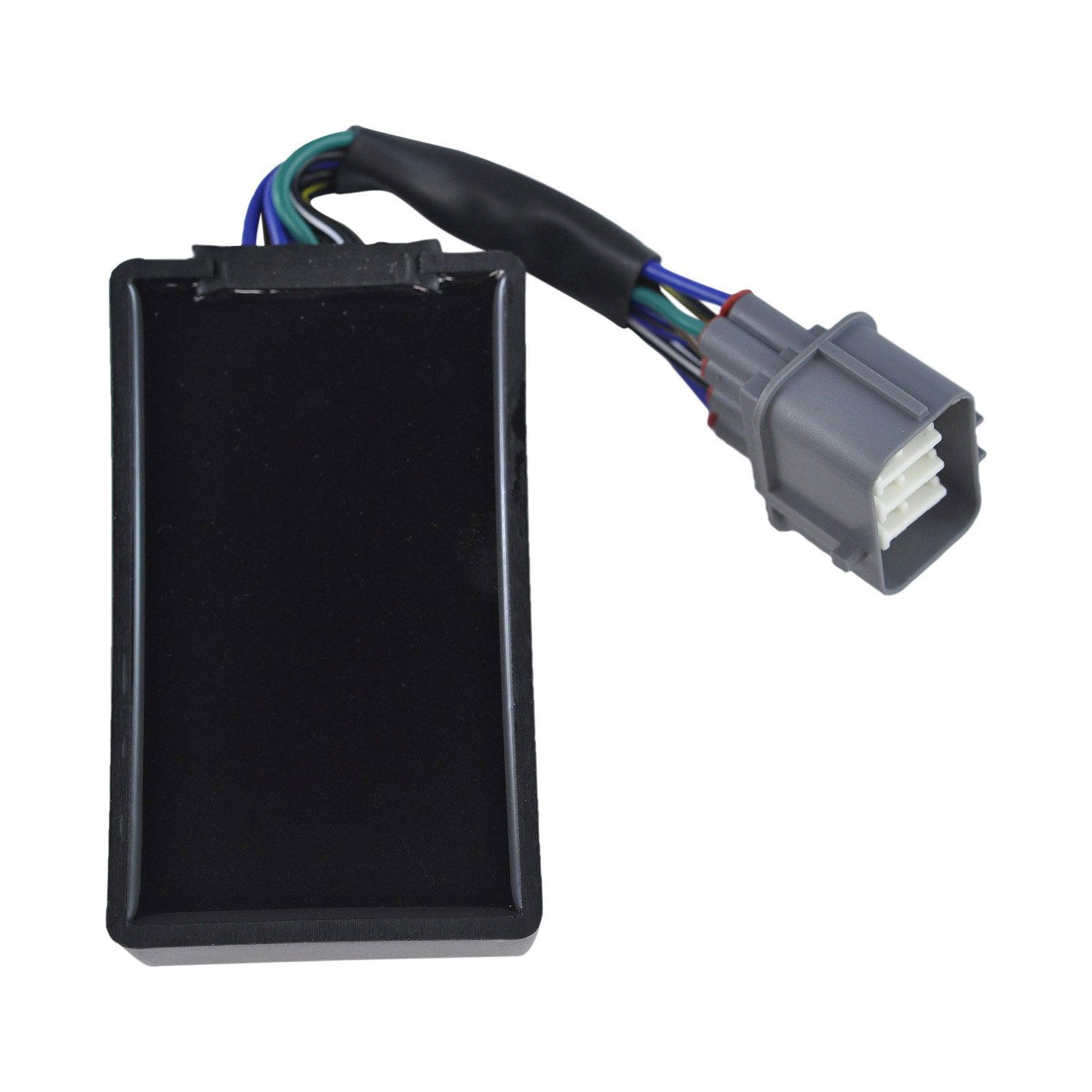

RMSTATOR HIGH PERFORMANCE CDI BOX

RMSTATOR is specialized in designing and manufacturing innovative electrical and electronic components for Powersports vehicles like motorcycles, ATV, SxS, UTV, snowmobiles, and PWC. Through unrelenting quality control, we ensure that each component meets or exceeds the OEM specs. With over 25 product families, rest assured that you will find the part you need.

FEATURES:

• RMStators PeakRPM technology provides a more aggressive timing curve for increased throttle response
• Ride at full throttle with our application-specific CDI box that raises the rev limiter by 1000 RPM
• Enjoy fast & easy installation with our plug & play design and included dielectric connector grease
• OEM-grade electronic components and printed circuit boards for long-term reliability and performance
• 90% of ignition issues are caused by a faulty stator. Fully test ignition components before buying

DIMENSIONS:

• Height: 27mm
• Length: 110mm
• Width: 78mm
• Distance between fixations holes: 126mm

OTHER SPECS:

• Number of plugs: 2
• Number of pins: 14

PLEASE NOTE: The only real way to test your CDI box is to swap it out with another known good unit from the same year/make/model. Because of this, we recommend that you rule everything else out before replacing the CDI box.

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.

Fitment Details

• Honda TRX300 2WD 1999
