Honda CRF250X 2007 - RMSTATOR 40W Conversion Kit Ac-Dc

RMSTATOR AC to DC 40W STATOR + VOLTAGE REGULATOR RECTIFIER

This RMSTATOR kit provides the stator with the higher power needed to make starting easier and turn on auxiliary lights and other accessories. Designed to work with the DC system, this set of parts are built-in relays that activate the switched 12 V DC output line only when the motor is running. Do you often forget to turn off your lights? No more worries! This kit will be perfect for you because the adjustable shut-off delay will turn them off automatically!

FEATURES:

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Highest grade of lamination materials
• All products shipped are tested

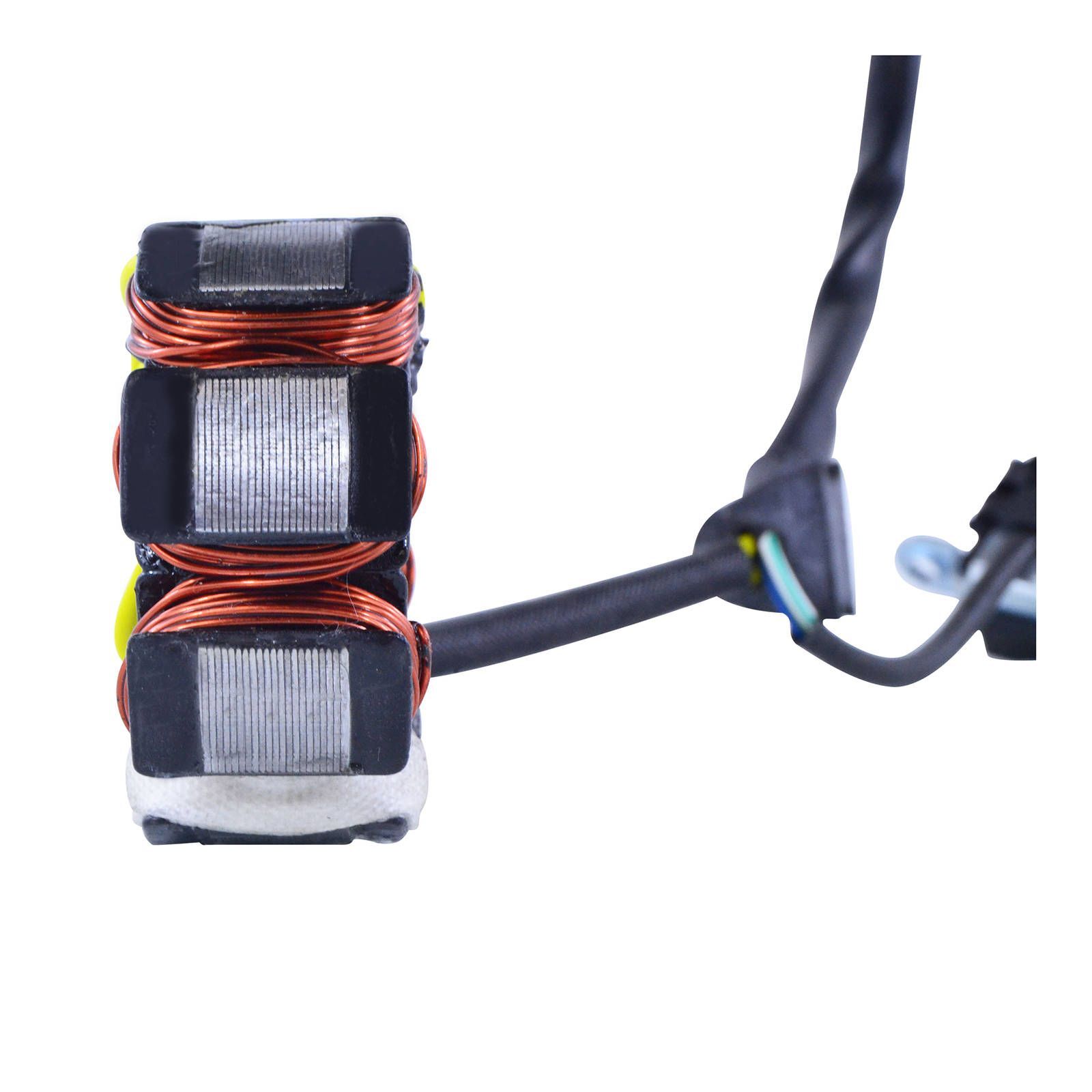

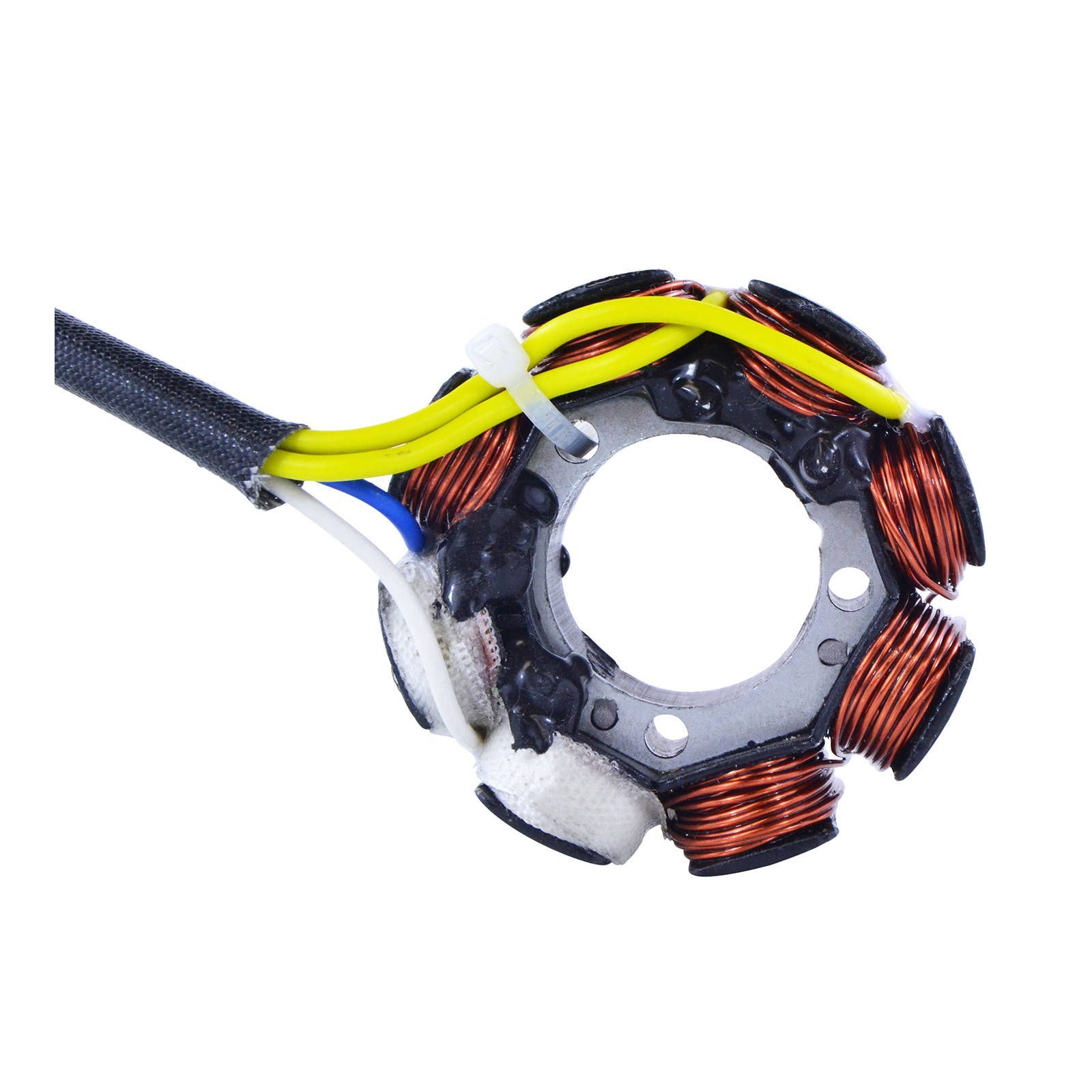

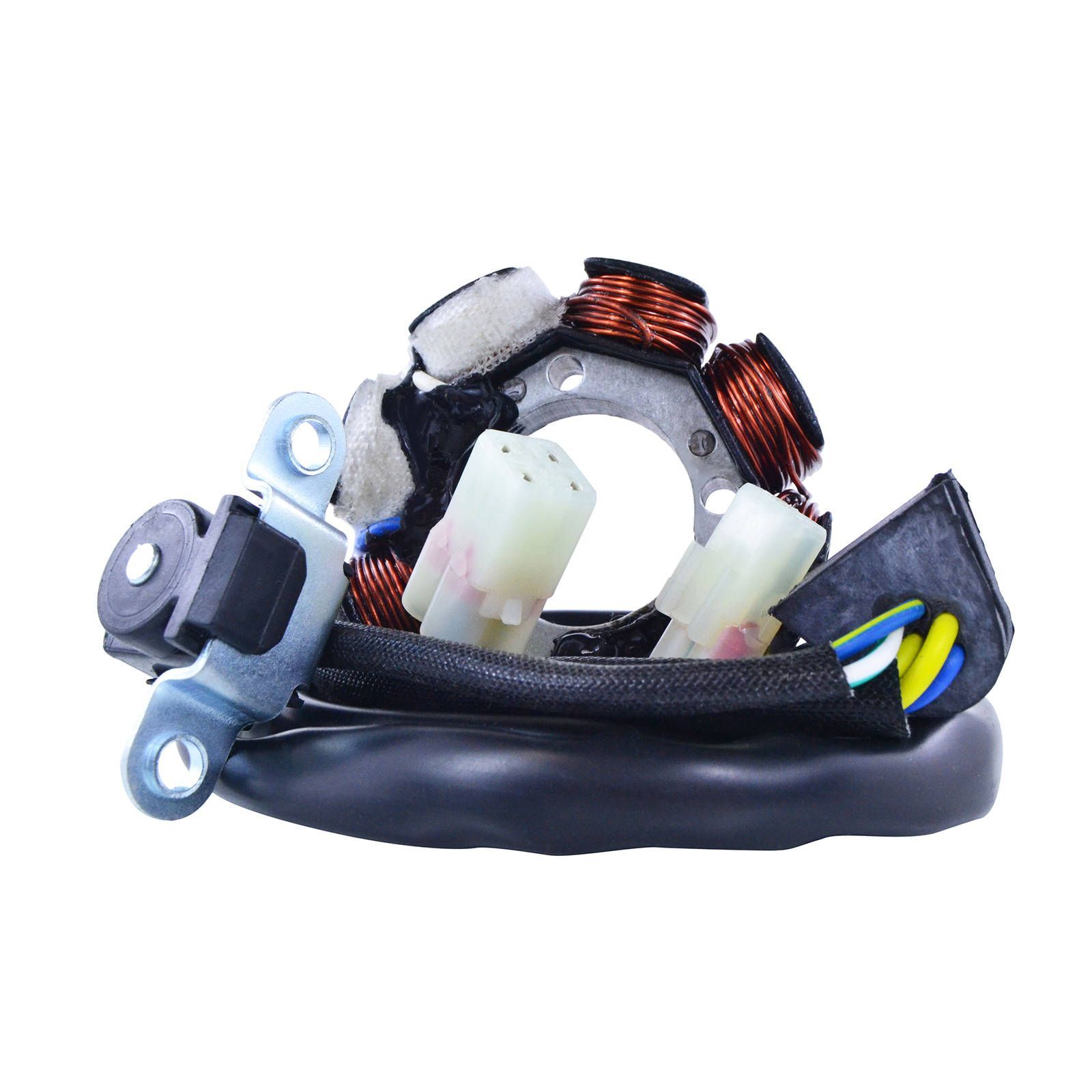

STATOR :

• Compatible with lighting systems of equal or less power
• Replace the OEM and increases power output significantly.
• Pick up pulsar coil included
• Connector included
• Rubber grommet included

STATOR DIMENSIONS:

• diameter: 28 mm
• Exterior diameter: 61 mm
• Thickness: 14 mm
• Length of wires stator to grommet: 100 mm
• Length of wires grommet to plug: 660 mm
• Length of pickup coil's wire to grommet: 65 mm

STATOR SPECS:

• Number of wires: 6
• Number of plugs: 4
• Number of pins: 6

WIRE TO WIRE RESISTANCE:

• Alternator: Yellow between each Yellow = 0.5 ohms +-20%
• Pickup: Blue/yellow to Green/White = 267 ohms +-20%
• Source: Blue to White = 24 ohms +-20%

VOLTAGE REGULATOR RECTIFIER DIMENSIONS:

• Width: 44 mm
• Length: 79 mm
• Height: 22 mm
• Wires length: 250 mm

OTHER SPECS:

• Number of wires: 5
• Minimum Charging Voltage: 14.5 V +- 0.5 V
• Maximum Charging Current: 50 A / 500 W
• Open Circuit Voltage: 15 V
• Operation Temperature: -20° to 85°



Please Note:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.



Fitment Details

• Honda CRF250X 2007
