Harley Davidson XLH1200 Sportster 1988 - 2010 Denali S4 Led Motorcycle Light Pod Kit

DENALI S4 LED LIGHT KIT

The S4 is the first light we developed as part of our new S-Series product line. The new S-Series lights were specifically engineered to reduce cost without sacrificing performance, quality or durability. In fact, the S4 features the same high-intensity LEDs as the D-Series lights, but utilize a single-piece optic and sealed beam construction to reduce the number of unique components. The result is a super durable high performing light that won't break the bank. The fixed lens features two flood optics and two spot optics to create the ultimate hybrid beam pattern; a super-wide close-range flood and a piercing spot beam in one housing.

Consistent with D-Series lights, the S4 features DENALI’s innovative DataDim™ Technology that enables the lights to be upgraded in seconds to dual intensity by connecting a plug-n-play DataDim™ Controller that will automatically switch the lights between half and full intensity with your vehicle's original high beam switch.

FEATURES:

• High-Intensity Series Cree LEDs outputting 6132 lumens per kit.
• DrySeal™ Submersible Waterproof light can withstand the most extreme environments
• LiveActive™ Thermal Management keeps the LEDs cool preventing the loss of light output from overheating
• Low profile mounting bracket with stainless steel hardware included

SPECS:

• LED’s: (8x) 7 Watt Cree XPL HI
• Power Draw: 4.6 Amps
• Beam Distance: 540 Feet
• Beam Width: 100 Feet
• Raw Lumens: 6132
• Intensity: Single Intensity Harness
• DataDim™ Compatible: Yes
• Operating Voltage: 12 VDC

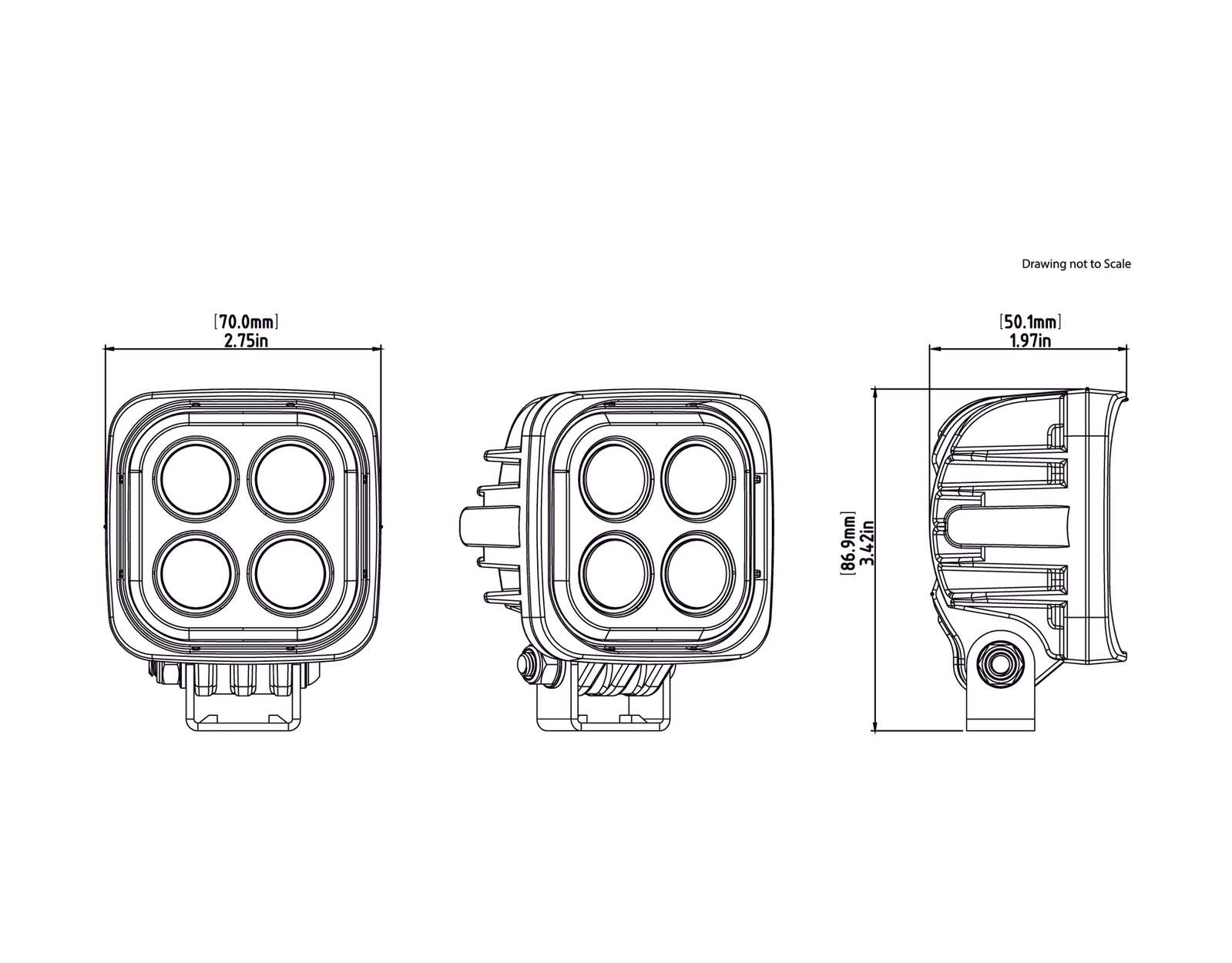

• Pod Size: 2.75” Square x 1.97” Deep (each)
• Pod Weight: 0.8 lbs (each)
• IP67 Waterproof & Submersible

WHATS'S IN THE BOX?

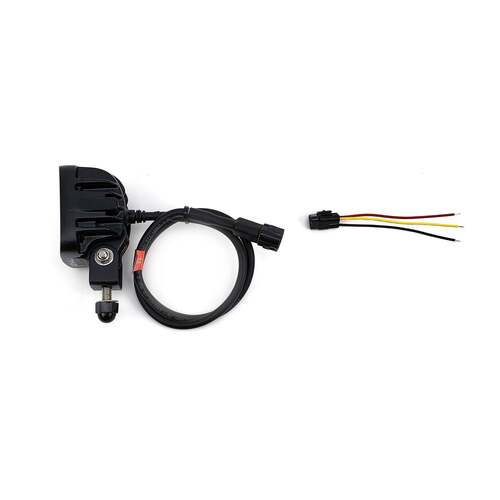

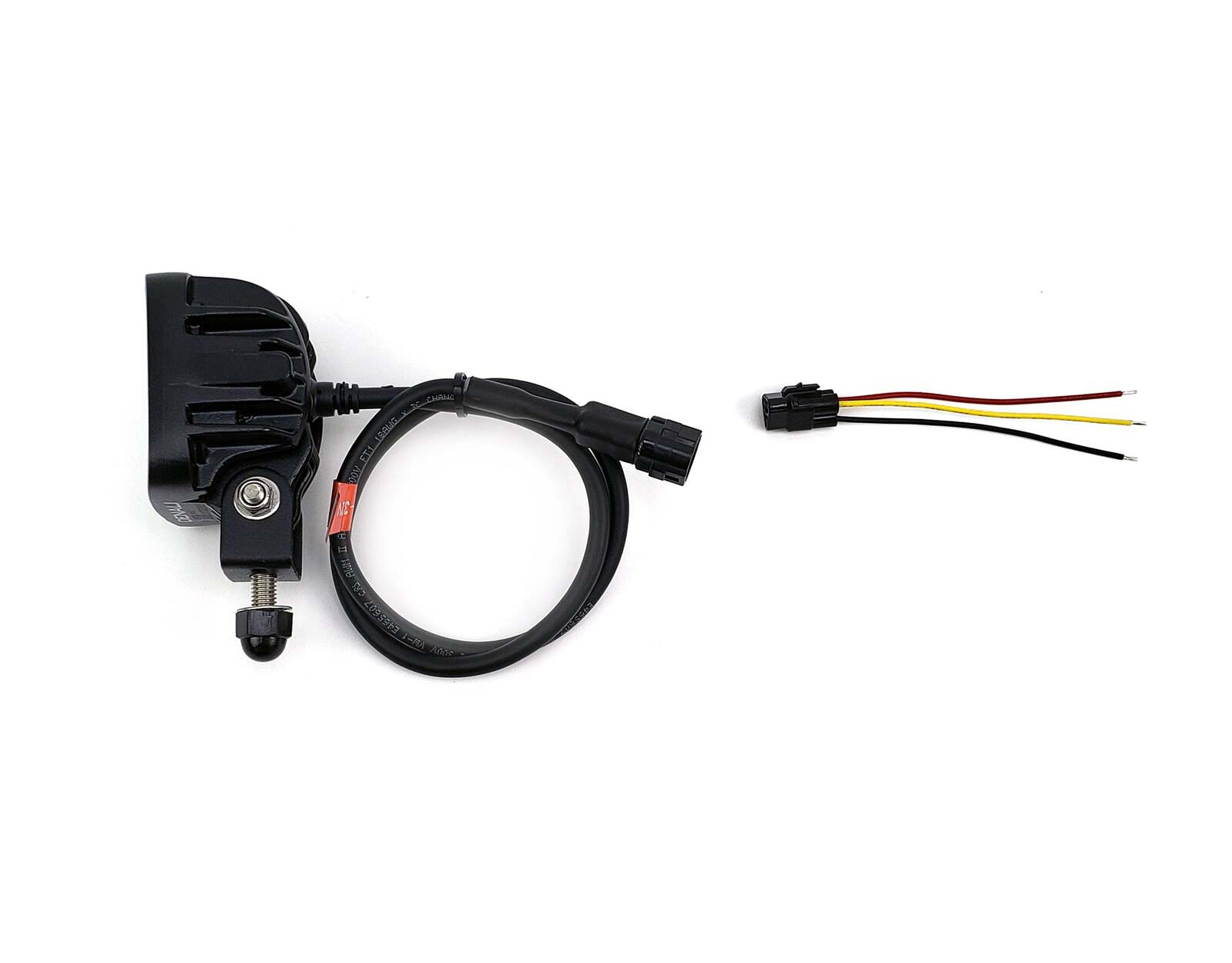

• (2x) LED Light Pods
• (1x) Standard Single Intensity Wiring Harness
• (2x) Hinge Mounts with M8 Stainless Steel Hardware
• (4x) Zip Ties & (1x) Adhesive Mounting Square

PLEASE NOTE: ONLINE ONLY

Fitment Details

• Harley Davidson 1200 SPORTSTER XLH 1988
• Harley Davidson 1200 SPORTSTER XLH 1989
• Harley Davidson 1200 SPORTSTER XLH 1990
• Harley Davidson 1200 SPORTSTER XLH 1991
• Harley Davidson 1200 SPORTSTER XLH 1992
• Harley Davidson 1200 SPORTSTER XLH 1993
• Harley Davidson 1200 SPORTSTER XLH 1994
• Harley Davidson 1200 SPORTSTER XLH 1995
• Harley Davidson 1200 SPORTSTER XLH 1996
• Harley Davidson 1200 SPORTSTER XLH 1997
• Harley Davidson 1200 SPORTSTER XLH 1998
• Harley Davidson 1200 SPORTSTER XLH 1999
• Harley Davidson 1200 SPORTSTER XLH 2000
• Harley Davidson 1200 SPORTSTER XLH 2001
• Harley Davidson 1200 SPORTSTER XLH 2002
• Harley Davidson 1200 SPORTSTER XLH 2003
• Harley Davidson 1200 SPORTSTER XLH 2004
• Harley Davidson 1200 SPORTSTER XLH 2005
• Harley Davidson 1200 SPORTSTER XLH 2006
• Harley Davidson 1200 SPORTSTER XLH 2007
