Harley Davidson FXDF Dyna Fat Bob 2006 - 2017 Denali D3 Led Motorcycle Light Single

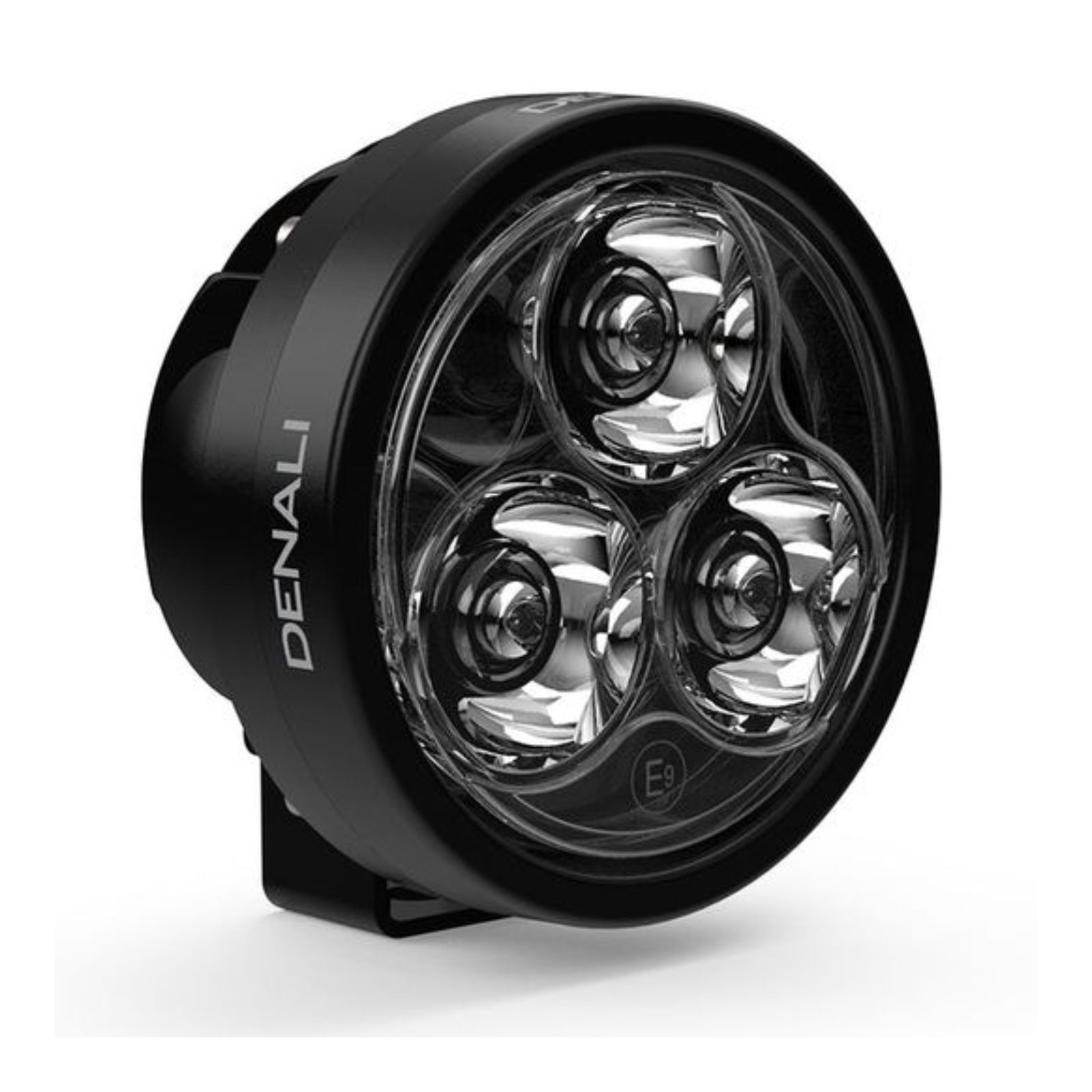

DENALI D3 LED DRIVING LIGHT

Our new D3 LED lights are built upon a decade of DENALI innovation to deliver the highest performing 36-watt street-legal driving light to hit the market. Our D3 driving light features our signature TriOptic™ beam system that includes a spot and hybrid driving lens with each light pod. Unlike previous TriOptic™ lights, the D3 hybrid driving beam is ECE and SAE compliant to deliver an impressive street-legal high beam in North America and European Union countries. But what if you're not concerned with street-legal precision and just want off-road outrageous? We got you covered too! The D3 spot lens was engineered for Maximum beam distance measuring over 1900 feet at 1 lux (per pair). No other 36-watt light even comes close. The spot beam is so impressive it actually outperforms top-tier competitors' lights that are twice its size.

Choose to add an additional set of amber or selective yellow lenses to achieve greater performance in adverse weather conditions or to make your vehicle significantly more visible to other motorists on the road!

FEATURES:

• TriOptic™ Lens System (includes spot and hybrid lenses with each pod)
• Best in class street-legal spot and hybrid beams (SAE/DOT & ECE certified)
• High-Intensity Series Cree LEDs outputting 2100 lumens per pod
• DataDim™ 3-wire smart-dimming technology (compatible with all DENALI dimming controllers)
• DrySeal™ Submersible Waterproof light can withstand the most extreme environments
• Impact PC™ Polycarbonate bezels won't crack, fade or corrode like traditional aluminum bezels.
• LiveActive™ Thermal Management keeps the LEDs cool preventing the loss of light output from overheating
• Low profile mounting bracket with stainless steel hardware included
• Additional SAE/DOT & ECE certified hybrid driving lens included (spot lens installed)
• Amber & Selective Yellow lenses available

SPECS:

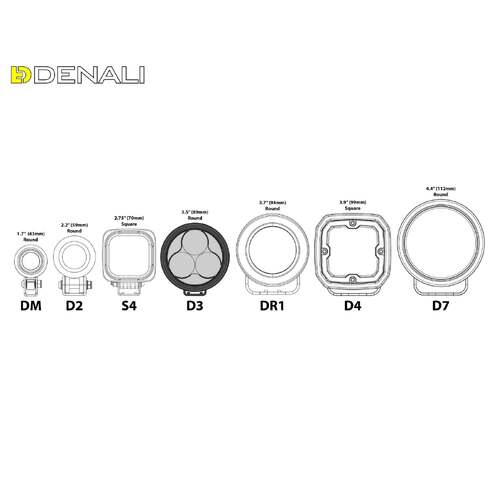

• Pod Size: 3.5"" (90mm) Round x 2.62"" (66mm) Deep
• LED: (3x) 11 Watt Cree XP-P LEDs
• Power Draw: 36 Watts (3 Amps)
• Lumens: 2100
• DataDim™ Compatible: Yes
• Operating Voltage: 9-32V DC
• IP67 Waterproof & Submersible
• Hybrid Lens Certifications: SAE/DOT J581 & ECE R112
• Spot Lens Certifications: ECE R112

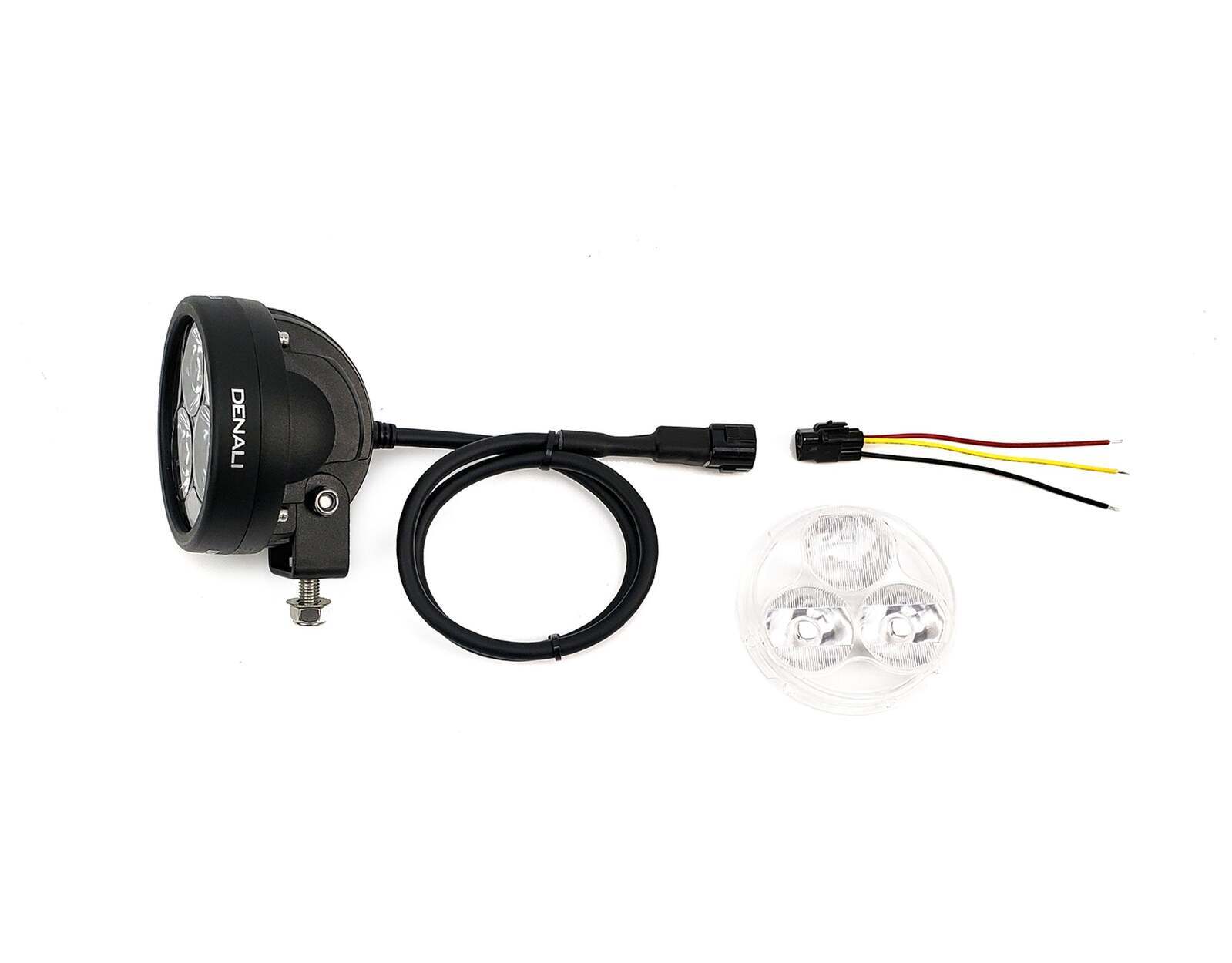

WHAT'S IN THE BOX?

• (1x) D3 LED Light Pod (spot lens installed)
• (1x) D3 Hybrid Lens
• (1x) Hinge Mounts with M8 Stainless Steel Hardware
• (1x) Wiring Pigtail

PLEASE NOTE: ONLINE ONLY

Fitment Details

• Harley Davidson 1690 FXDF FAT BOB 2012
• Harley Davidson 1690 FXDF FAT BOB 2013
• Harley Davidson 1690 FXDF FAT BOB 2014
• Harley Davidson 1690 FXDF FAT BOB 2015
• Harley Davidson 1690 FXDF FAT BOB 2016
