Harley Davidson FXDC Dyna Super Glide Cust 2005 - 2014 Denali DM Led Motorcycle Light Pod Kit

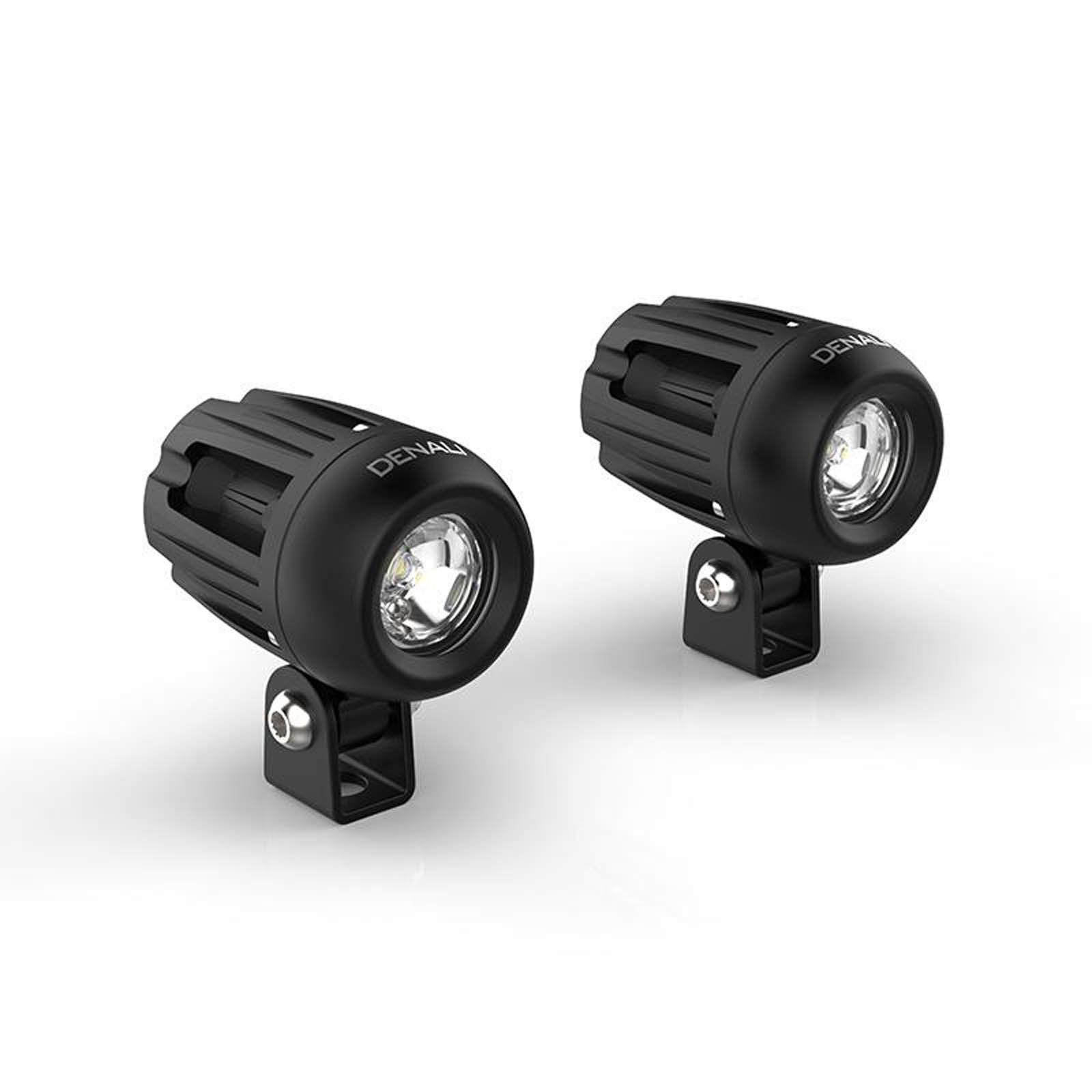

DENALI DM LED LIGHT KIT

The DM was designed to concentrate all 2190 lumens into a small optic to create a super-compact light that is incredibly bright to look at. These lights are the ideal solution for Daytime visibility but will still outshine your typical high beam. The installed spot beam lenses create a beam that reaches a distance of 395 feet (per pair). The included flood lenses carry an official E-Mark certification and throw a beam of light 150 feet wide.

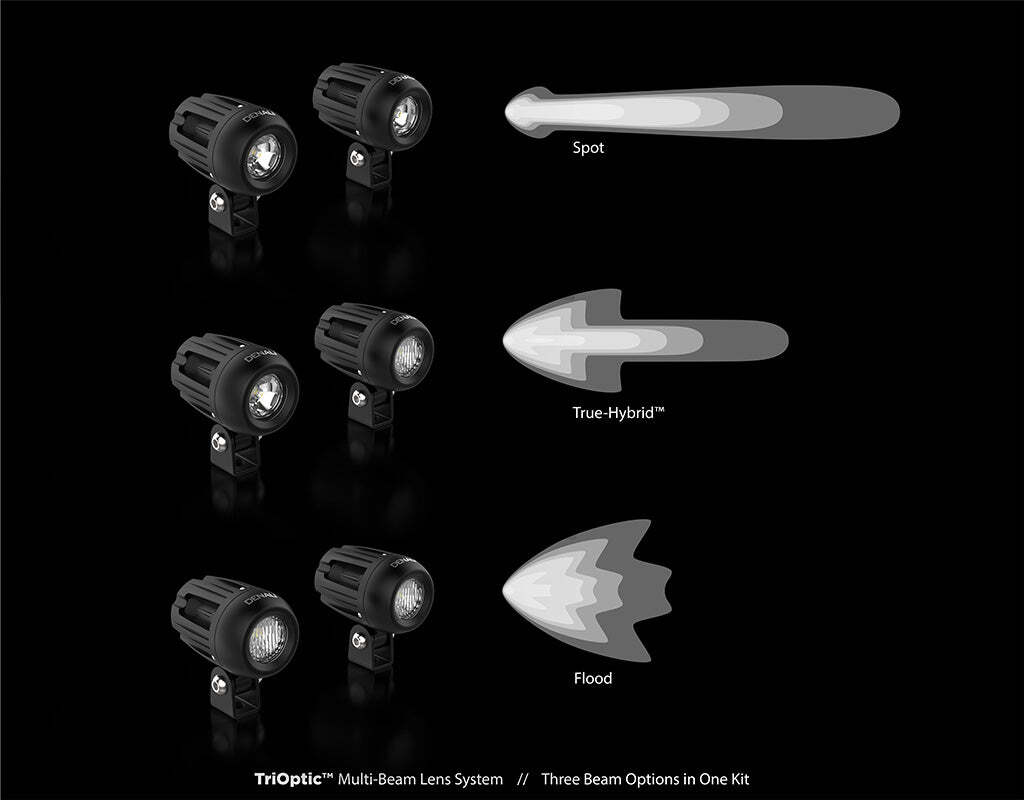

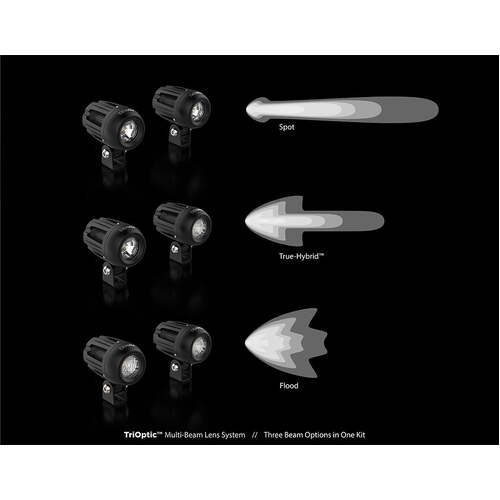

Our TriOptic™ Lens System means that each light pod has a factory-installed clear spot lens but also includes an optional flood lens to enable three different beam options when used as a pair (Spot, Flood, or Hybrid).

Choose to add an additional set of amber or selective yellow lenses to achieve greater performance in adverse weather conditions or to make your vehicle significantly more visible to other motorists on the road!

FEATURES:

• High-Intensity Series Cree LEDs outputting 2190 lumens per pair
• DataDim™ equipped light pods enable plug and play connection, and integrated dimming, with DENALI dimming and lighting controllers.
• DrySeal™ Submersible Waterproof light housings can withstand the most extreme environments
• Impact PC™ Polycarbonate bezels won't crack, fade or corrode like traditional aluminum bezels
• LiveActive™ Thermal Management keeps the LEDs cool preventing the loss of light output from overheating
• Low profile mounting bracket with stainless steel hardware included
• Additional pair of E-Mark Approved flood lenses included
• Interchangeable lenses available in Clear, Amber, and Selective Yellow

SPECS:

• LED’s: (2x) 10 Watt Cree XPL HI
• Power Draw: 1.6 Amps
• Beam Distance (Spot): 395 Feet
• Beam Width (Spot): 55 Feet
• Raw Lumens: 2190
• Intensity: Single Intensity Harness
• DataDim™ Compatible: Yes
• Operating Voltage: 12 VDC

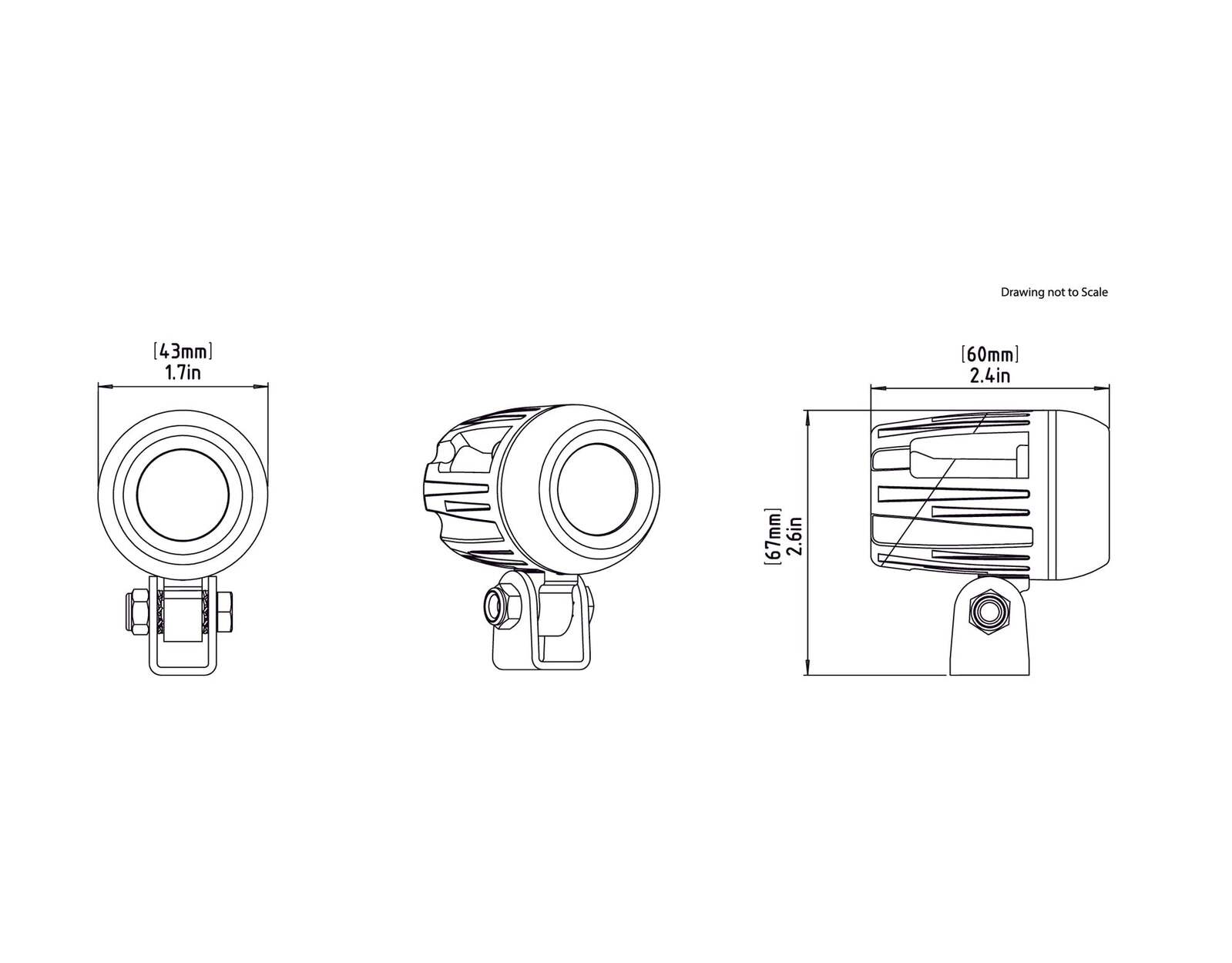

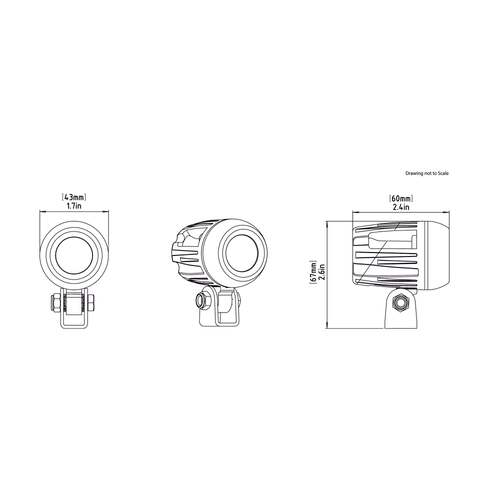

• Pod Size: 1.7” Round x 2.4” Deep (each)
• Pod Weight: 0.5 lbs (each)
• IP67 Waterproof & Submersible
• E Mark Approved Flood Lenses

WHAT'S IN THE BOX:

• x2 - LED Light Pod
• x2 - M8 Mounting Hardware
• x2 - Spot Lens (installed)
• x2 - E-Mark Certified Flood Lens
• x1 - Single-Intensity Wiring Harness
• x1 - DrySeal™ On-Off Switch
• x1 - 7/8" Handlebar Switch Mount
• x1 - 1" Handlebar Switch Mount
• x2 - Self Tapping Screw
• x1 - Adhesive Pad
• x4 - Zip Tie
• x1 - Instruction Manual

PLEASE NOTE: ONLINE ONLY

Fitment Details

• Harley Davidson 1584 FXDC SUPER GLIDE CUSTOM 2007
• Harley Davidson 1584 FXDC SUPER GLIDE CUSTOM 2008
• Harley Davidson 1584 FXDC SUPER GLIDE CUSTOM 2009
• Harley Davidson 1584 FXDC SUPER GLIDE CUSTOM 2010
