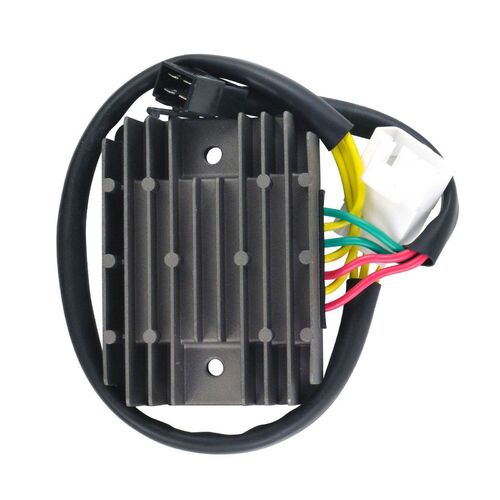

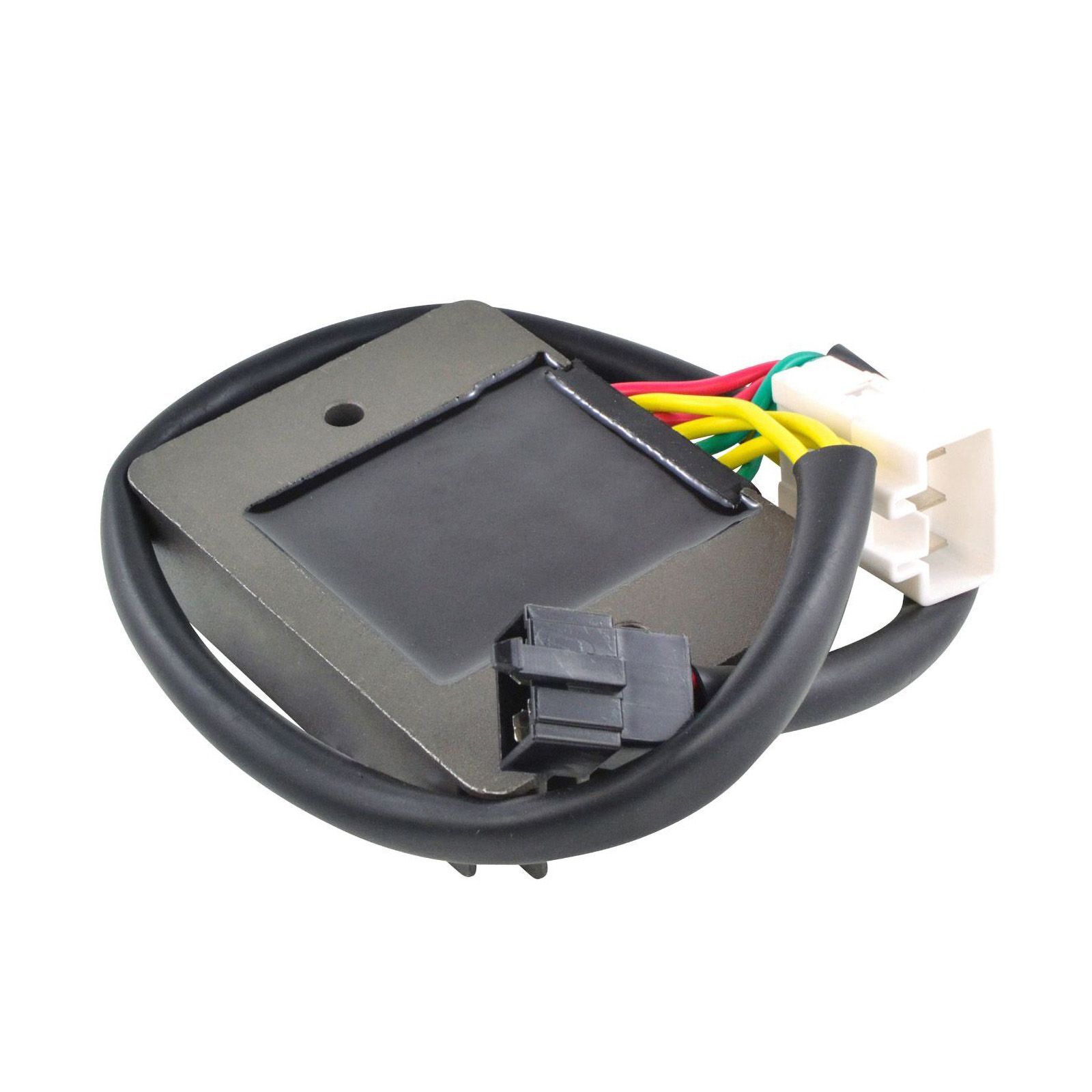

Aprilia RSV4 FACTORY 2011 - RMSTATOR Voltage Regulator Rectifier

RMSTATOR REGULATOR RECTIFIFER

STOP BURNING YOUR REGULATOR RECTIFIER! It is time to update or replace your voltage regulator with RM STATORS advanced technology.

FEATURES:

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• The quality exceeds the OEM equipment
• Improved heat sink and charging capabilities
• Higher grade of electric components

DIMENSIONS:

• Width: 80mm
• Length: 110mm
• Height: 28mm
• Wires length: 150mm & 400mm
• Fixation holes centre to centre: 80mm

OTHER SPECS:

• Number of plugs: 2
• Number of pins: 7
• Number of wires: 7
• Minimum Charging Voltage: 14.5 V +- 0.5 V
• Maximum Charging Current: 50 A / 500 W
• Open Circuit Voltage: 15 V
• Operation Temperature: -20° to 85°

PLEASE NOTE: Battery condition is extremely important. No voltage regulator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.

Fitment Details

• Aprilia RSV4 1000 FACTORY 2011
